9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

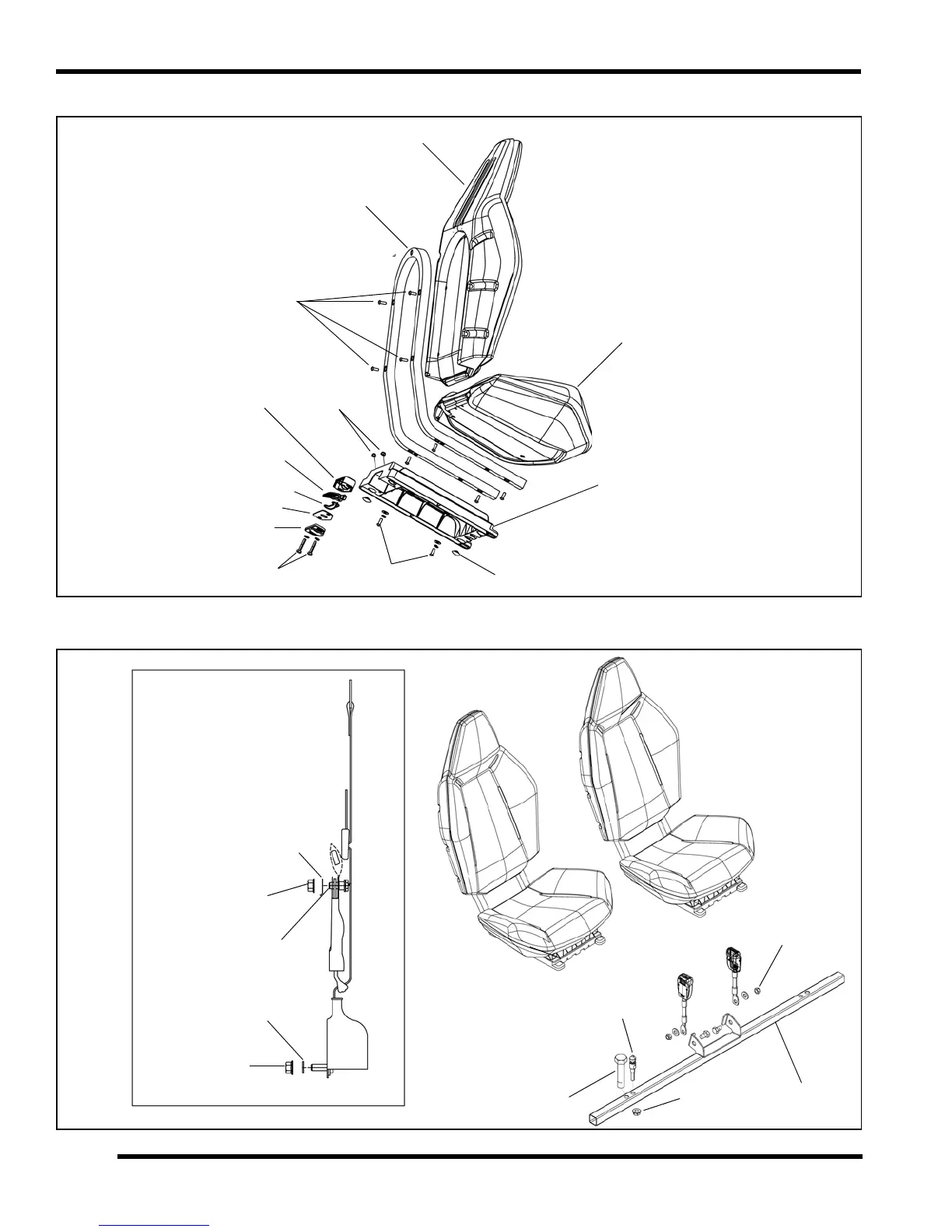

Seat Assembly
Seat Belts / Mounting (RZR XP)
Seat Base Asm.
Cap
Plate
Spring
Lever
Latch Body
Grommets
Seat
Seat Back
Seat Bottom
Hoop Tube
Nuts
41-57 in-lbs
(4.6-6.4 Nm)
48 in-lbs
(5.4 Nm)
41-57 in-lbs
(4.6-6.4 Nm)
Rear
Seat Base
Latch
3 Point Seat Belt
Plunger
40 ft-lbs
(54 Nm)
43 ft-lbs
(58 Nm)
40 ft-lbs
(54 Nm)
40 ft-lbs
(54 Nm)
17 ft-lbs
(23 Nm)
(Drivers Side Shown)
Washer
Shoulder Bolt
Retainer
