2.40
MAINTENANCE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
SUSPENSION (FOX™)

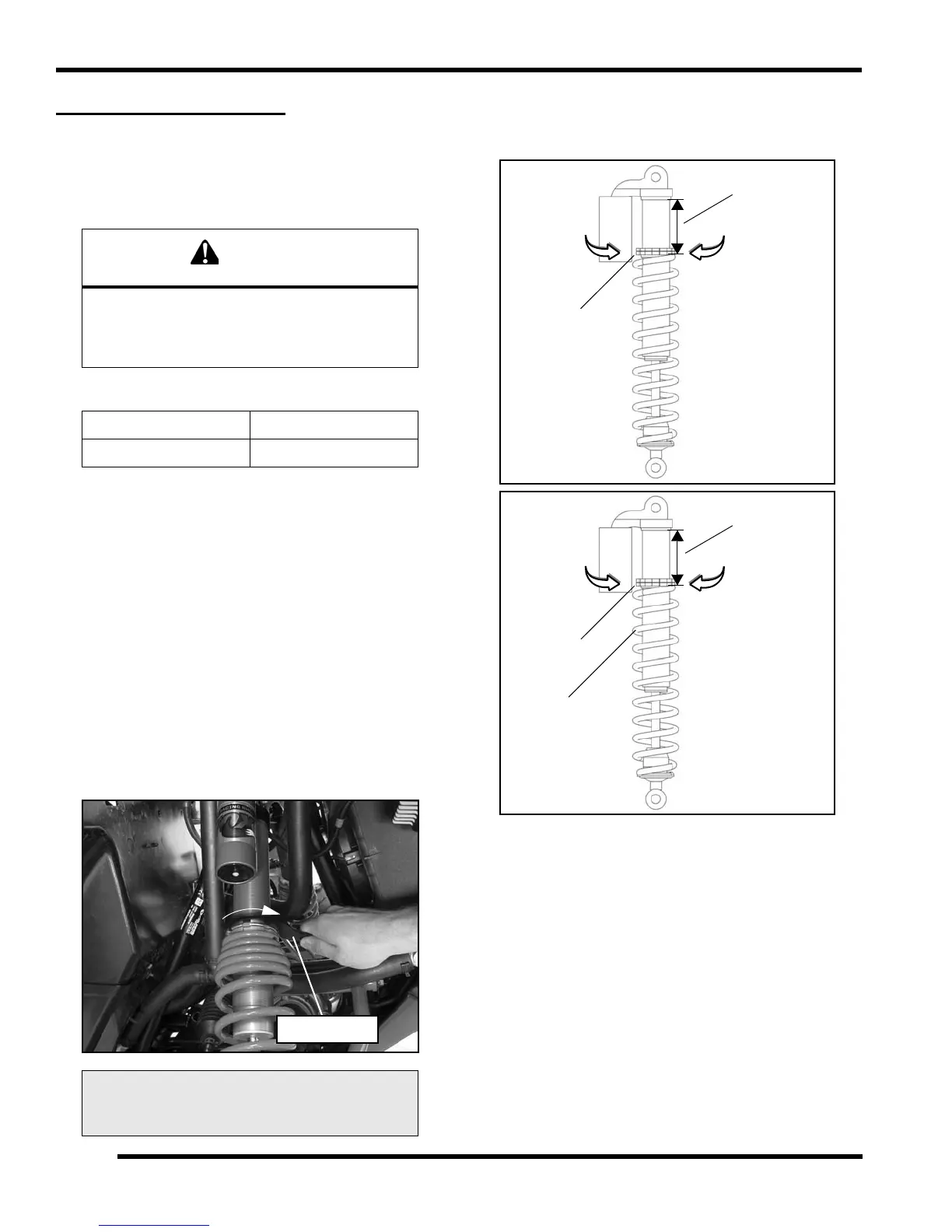

Spring Preload Adjustment
The front and rear shocks have a spring preload
adjustment. Suspension spring preload may be adjusted
to suit different riding conditions or vehicle payloads.
NOTE: Refer to the shock illustrations within this
procedure for spring preload measurement location.
The factory preload setting is appropriate for nearly all
riding conditions. Since this vehicle is equipped with full
skid plates, adjustment is not necessary.
If desired, the spring preload setting may be adjusted to
maintain vehicle clearance height when carrying loads.
1. Raise and safely support the front or rear of the
vehicle off the ground to allow the suspension to fully
extend.
2. Loosen the upper jam nut adjustment ring using the
spanner wrench (PN 2877408) included in the
vehicle’s tool kit.
3. Turn the lower adjustment ring (1) clockwise to
increase preload or counter-clockwise to decrease
preload.
IMPORTANT: DO NOT increase the spring preload by
more than one inch (25.4 mm) over the factory setting.
4. Once you have obtained the correct preload, hold the
lower adjustment ring while tightening the upper
adjustment ring to lock them in place.
IMPORTANT: Always return the spring preload to the
factory setting after the load is removed from the
vehicle. The increased suspension height will
negatively impact vehicle stability when operating
without a load.
WARNING
Uneven adjustment may cause poor handling of
the vehicle, which could result in an accident
and serious injury or death. Always adjust both
the left and right spring preloads equally.
Spring Preload Adjustment - Factory Setting
Front Rear
7.625 in. (19.37 cm) 3.625 in. (9.21 cm)
Shock Spanner Wrench:
PN 2877408
PN 2877408
Increase
Preload
Decrease
Preload
1
Factory Preload Setting
7.625 in. (19.37 cm)
2.0 Piggyback
Front Shock
Increase
Preload
Decrease
Preload
1
Factory Preload Setting
3.625 in. (9.21 cm)
2.0 Piggyback
Rear Shock
Ride-In Spring
Not Shown
