TRANSMISSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

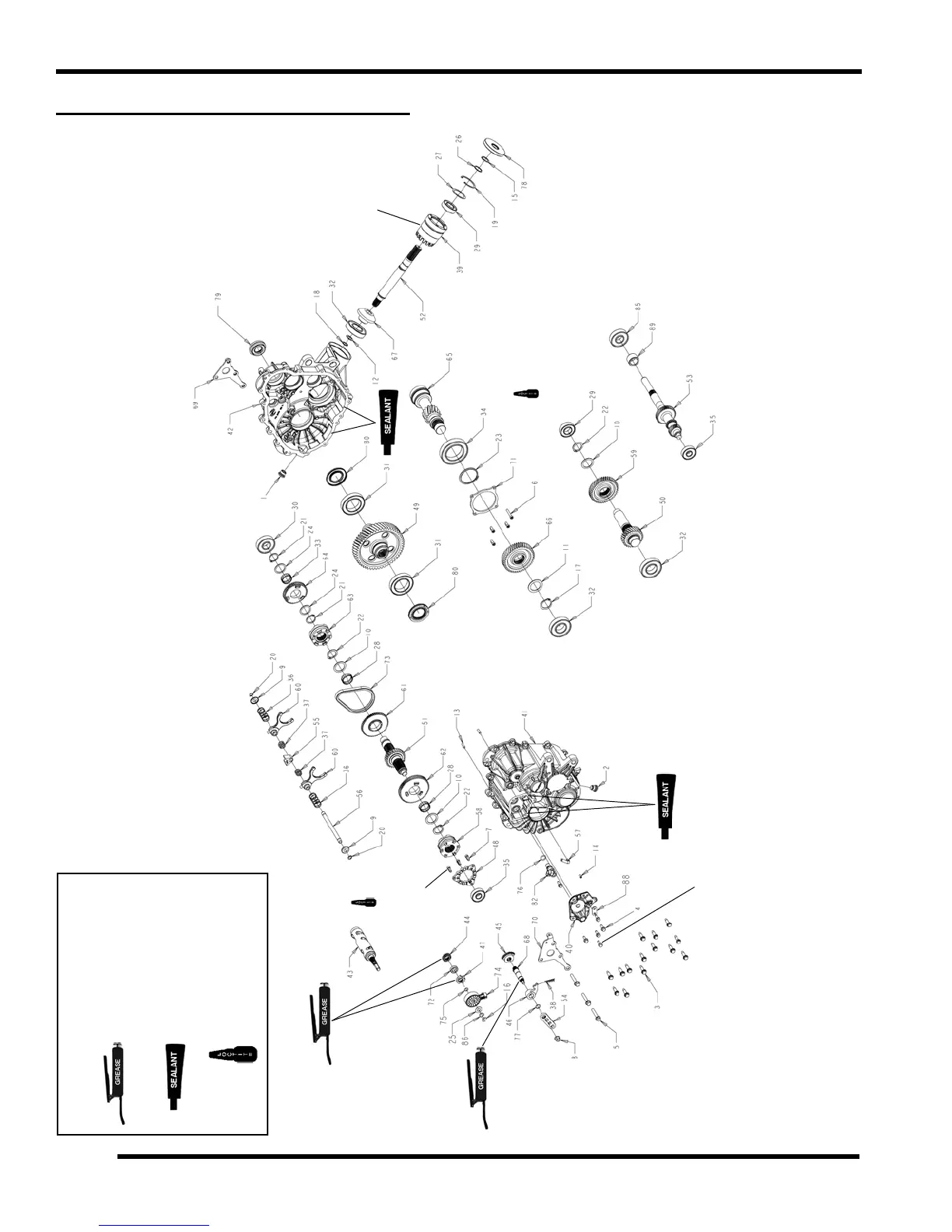

TRANSMISSION EXPLODED VIEW
FOR REASSEMBLY
Apply White Lithium Based Grease.
Apply Polaris Crankcase Sealant.
Apply Loctite
®
to
the bolt threads.
12-18 ft-lbs
(16-24 Nm)
10-14 ft-lbs
(14-19 Nm)
8-10 ft-lbs
(11-14 Nm)
242
™
242
™
Refer to “Snorkel Gear
Backlash Procedure”
10-14 ft-lbs
(14-19 Nm)
8-10 ft-lbs
(11-14 Nm)
15-20 ft-lbs
(20-27 Nm)
15-20 ft-lbs
(20-27 Nm)
9-12 ft-lbs
(12-16 Nm)
