9.34
BRAKES
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

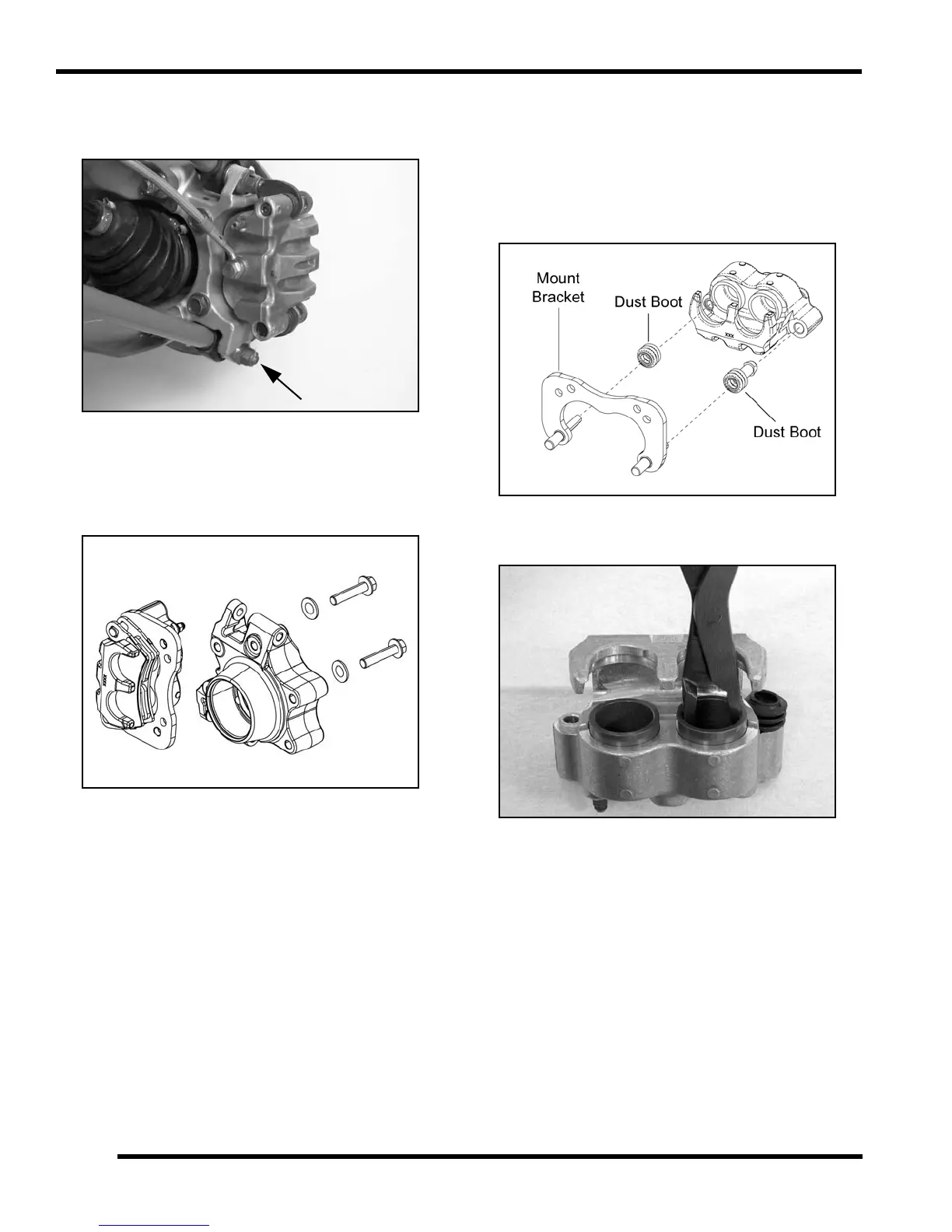

5. Remove the lower radius rod outer mounting bolt, nut
and washer from the bearing carrier. Swing radius rod
down. Discard nut.
6. Loosen the brake pad adjustment set screw to allow
brake pad removal after the caliper is removed.
7. Remove the two caliper mounting bolts and remove
the caliper.
Caliper Disassembly
1. Remove both brake pads from the caliper. Refer to
“REAR BRAKE PADS (RZR XP 4)”.
2. Remove mount bracket assembly and dust boots from
caliper. Thoroughly clean caliper before disassembly
and prepare a clean work area for disassembly.
3. Use a commercially available caliper piston pliers to
extract the pistons from the caliper.
IMPORTANT: Do not remove the caliper pistons with
a standard pliers. The piston sealing surfaces will
become damaged if a standard pliers is used.
