10.15
ELECTRICAL
10
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

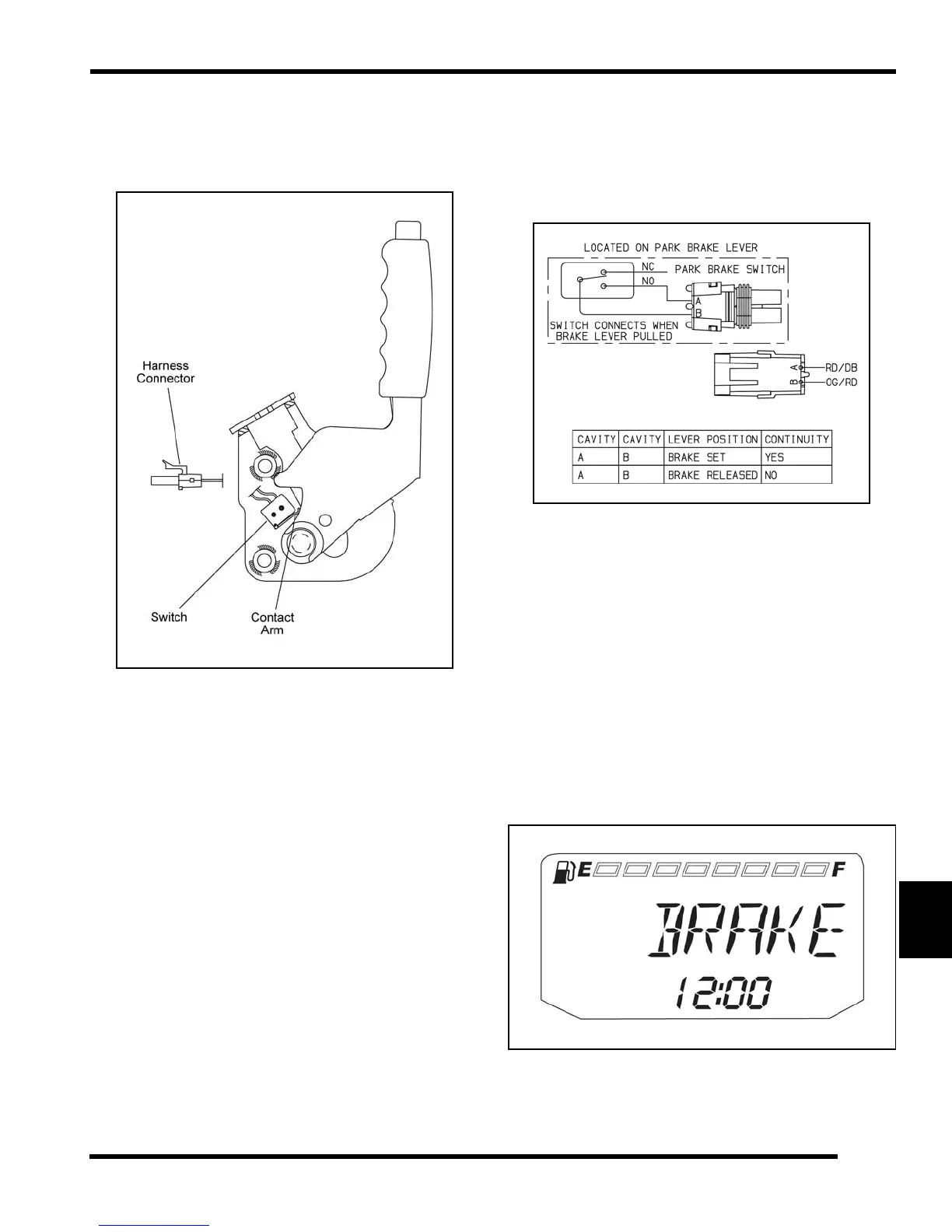

Parking Brake Switch (INT’L Model)
The parking brake switch is located within the parking
brake lever. Remove the rubber boot covering the parking
brake lever to locate the internally mounted switch.
The switch remains in the “open” position when the park
brake lever is not applied.
When the parking brake lever is applied, the switch makes
contact and sends voltage to the ECU to illuminate
“BRAKE” in the instrument cluster rider information
display area (see “Park Brake Indicator”).
NOTE: If the parking brake is applied the ECU will
rev limit the engine at 1500 RPM until the parking
brake is released. This feature has been added to
prevent drive-away with the parking brake applied.
Testing The Parking Brake Switch
1. Disconnect the harness connector at the parking
brake switch (Orange/Red and Red/Blue wires).
2. Place the ohmmeter leads onto the switch terminals.
The reading should be infinite (OL).
3. Apply the parking brake. Continuity should now exist
between the switch terminals. If no continuity exists
when the parking brake is applied, try to clean the
switch terminals and re-test. Replace switch if
necessary.
Park Brake Indicator
This warning is used to notify the operator that the park
brake lever is engaged.
When the parking brake is fully engaged, “BRAKE”
appears in the rider information display. Engine speed is
limited to 1500 RPM in all gears, except neutral. If throttle
is applied, this limiting feature prevents operation, which
protects the park brake pads from excessive wear.
