7.32
FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

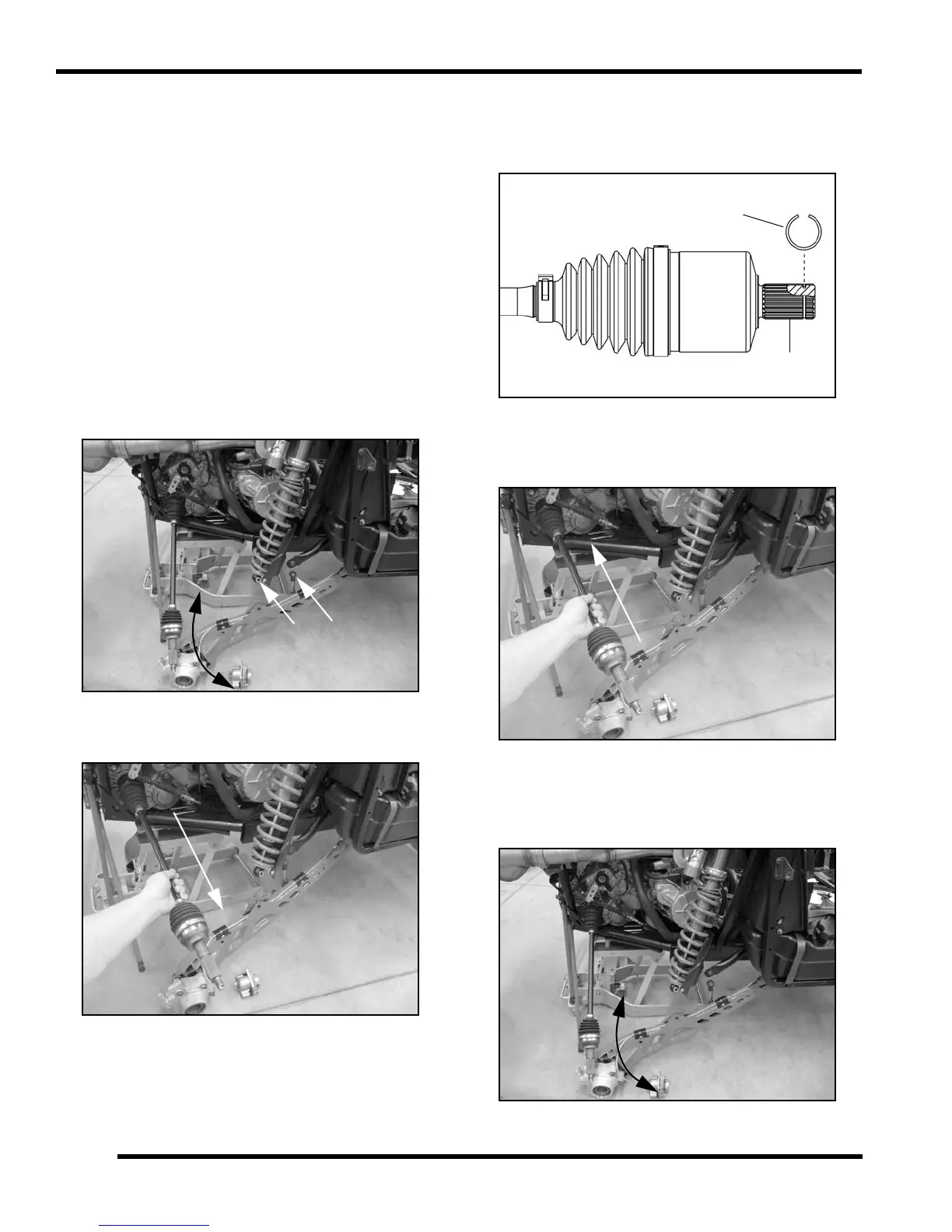

6. Remove the rear hub assembly from the bearing
carrier.
7. Support the trailing arm from underneath.
8. Remove the lower shock mounting bolt and nut.
Swing the shock inward. Discard the nut.
9. Remove the stabilizer bar mounting bolt, washer and
nut. Discard the nut.
10. Lift the trailing arm assembly upward so the rear drive
shaft is parallel with the ground.
11. Leaving the drive shaft in the transmission, swing the
rear trailing arm assembly outward until it is free from
the rear drive shaft.
12. Lower the trailing arm.
13. With a short, sharp jerk, remove drive shaft from the
transmission splines.
Drive Shaft Installation
1. Install new spring ring on drive shaft. Apply an anti-
seize compound to the splines.
2. Align splines of drive shaft with transmission splines
and reinstall the drive shaft. Use a rubber mallet to tap
on the outboard end of the drive shaft if necessary.
3. Swing the rear trailing arm assembly outward and
upward until the rear axle can be inserted into the
bearing carrier. Support the trailing arm from
underneath.
Apply
Anti-Seize
NEW
Spring Ring
To Next Page
