FINAL DRIVE
7

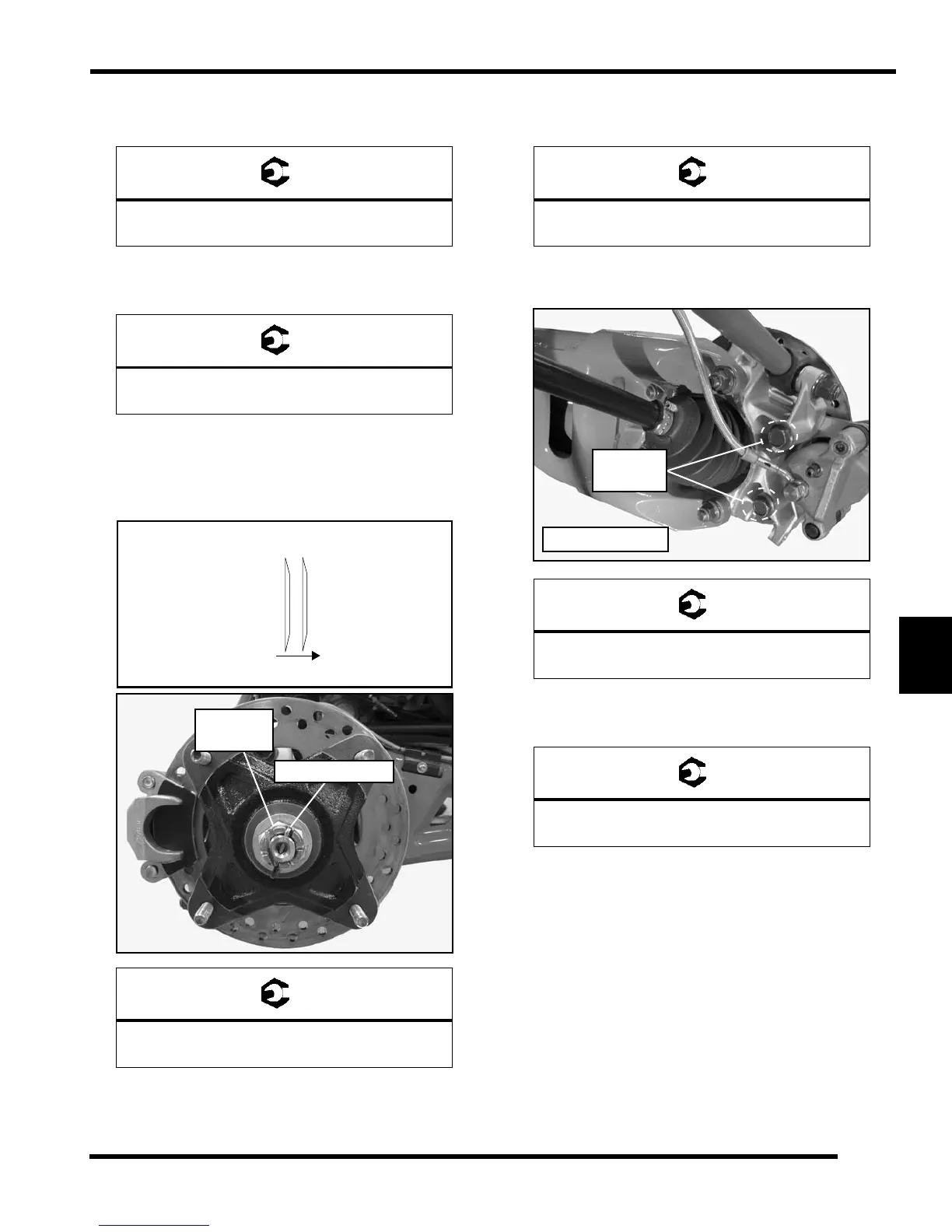

9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.
4. Install the lower shock mounting bolt and new nut.
Torque fastener to specification.
5. Install the stabilizer bar mounting bolt, washer and
new nut. Torque fastener to specification.
6. Apply Anti-Seize to drive shaft axle splines.
7. Install rear wheel hub assembly. Install the (2) cone
washers and castle nut. Torque castle nut to
specification. Install new cotter pin.
8. Install the radius rod bolts, washers and new nuts.
Torque fasteners to specification.
9. Install the rear brake caliper assembly and new bolts.
Torque to specification.
10. Install wheel and (4) wheel nuts. Torque wheel nuts
to specification.
= T
Lower Shock Bolt to Trailing Arm:
70 ft-lbs (95 Nm)
= T
Stabilizer Bar Linkage:
31-34 ft-lbs (42-46 Nm)
= T
Rear Wheel Hub Castle Nut:
80 ft-lbs (108 Nm)
Out
Cone Washers
Wheel
Hub
80 ft-lbs
(108 Nm)
NEW Cotter Pin
= T
Radius Rods to Bearing Carrier:
45 ft-lbs (61 Nm)
= T
Rear Caliper Mounting Bolts:
40 ft-lbs (54 Nm)
= T
Wheel Nuts:
30 ft-lbs (41 Nm) + 90° (1/4 turn)
40 ft-lbs
(54 Nm)
RZR XP Shown
