BODY / STEERING / SUSPENSION
5
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

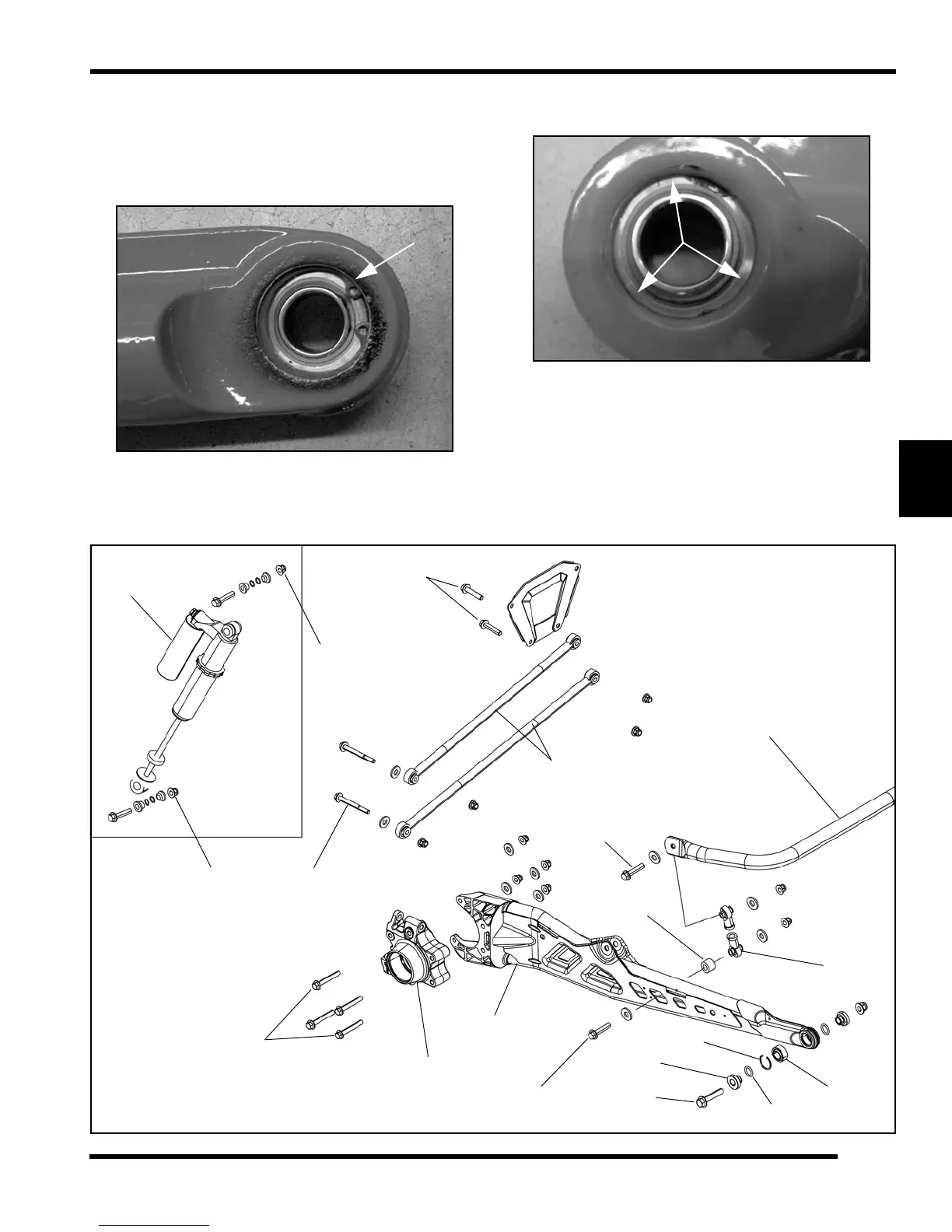

Trailing Arm Spherical Bearing Replacement
1. Remove trailing arm (see “REAR TRAILING ARM”).
2. Remove bushings and O-rings.
3. Remove snap ring that retains the spherical bearing.
4. Properly support the trailing arm and press the
spherical bearing out of trailing arm casting.
5. Be sure to only press on outer most surface of bearing
race, do not press on the center spherical bearing.
6. Inspect trailing arm bearing housing for wear or
damage. Replace trailing arm if damaged.
7. Press in new bearing until fully seated into trailing arm
casting.
8. Install new snap ring, new O-rings and bushings.
Rear Suspension Exploded View
Radius Rods
Shock
Stabilizer Bar
Link
Bearing Carrier
Trailing Arm
Spherical
Bushing
Bushing
50 ft-lbs
(67.7 Nm)
40 ft-lbs
(54 Nm)
31-34 ft-lbs
(42-46 Nm)
31-34 ft-lbs
(42-46 Nm)
(95 Nm)
70 ft-lbs
70 ft-lbs
(95 Nm)
O-Ring
Bearing
Snap
Ring
45 ft-lbs
(61 Nm)
40 ft-lbs
(54 Nm)
