PVT / FINAL DRIVE / WHEEL AND TIRE
Drive Clutch / Driven Clutch / Belt Service
Refer to Chapter 6 “Clutching (PVT)” for service and
removal procedures.
PVT Intake Pre-Filter Service
It is recommended that the PVT intake pre-filter be
inspected daily. The filter should be inspected using the
following procedure:

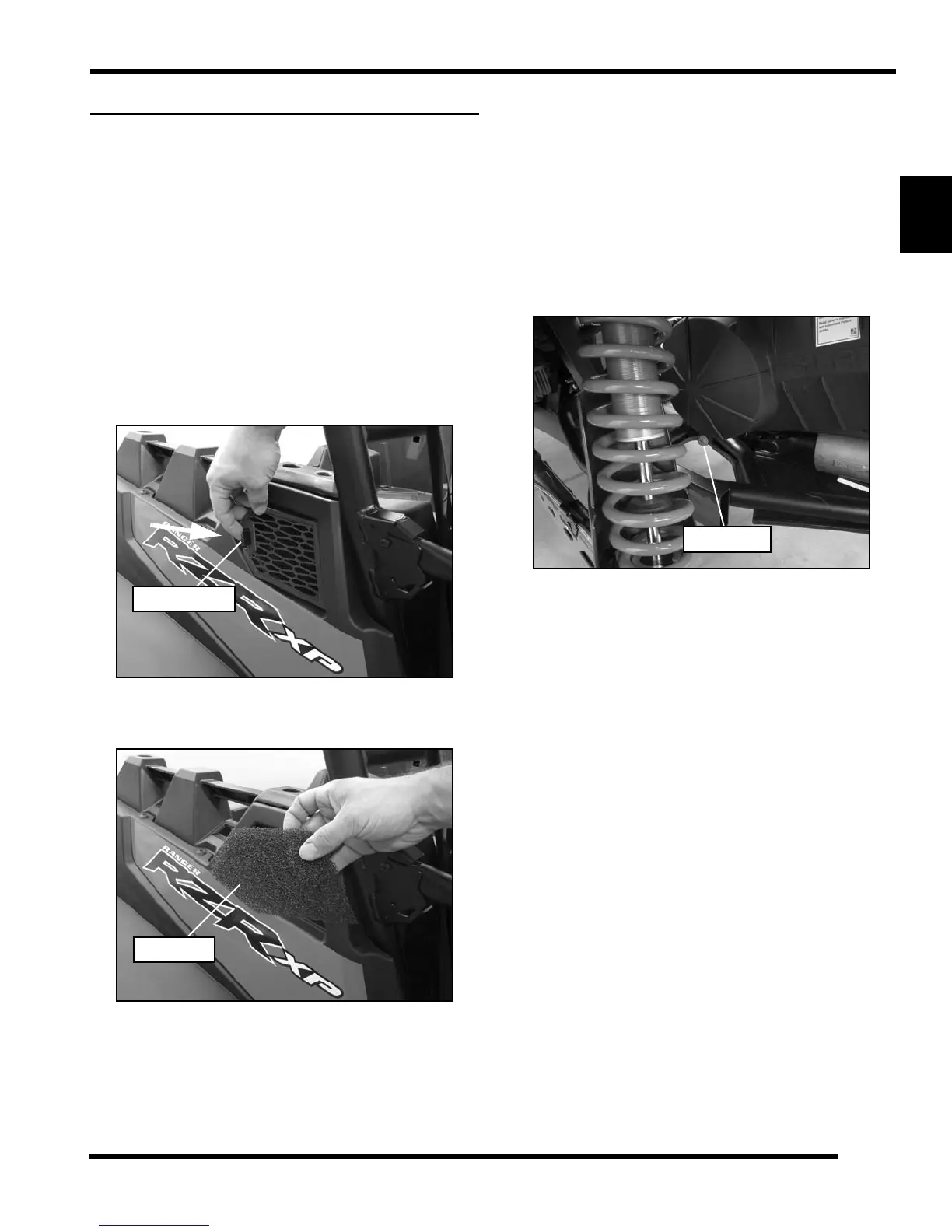

1. The PVT intake pre-filter is located just above the
right rear wheel fender.
2. Press in on the intake grill cover tab to access the pre-
filter.
3. Inspect the pre-filter. If necessary, clean with soapy
water and dry with low pressure compressed air.
PVT Drying
NOTE: After operating in water, the vehicle’s PVT
system should be checked immediately. Use the
following instructions to dry it out before operating.
The PVT drain plug is located at the bottom of the outer
clutch cover. Access the drain plug through the left rear
wheel well.
1. Using a flat blade screwdriver, remove the PVT drain
plug and O-ring from the outer clutch cover.
2. Allow the water to drain out completely.
3. Reinstall the drain plug and O-ring.
4. Place the transmission in PARK, apply the brake and
start the engine.
5. Apply varying throttle for 10-15 seconds to expel the
moisture and air-dry the belt and clutches.
NOTE: Do not hold the throttle pedal wide open for
more than 5 seconds.
6. Allow the engine RPM to return to idle, then shift the
transmission into low gear.
7. Test the PVT system for belt slippage. If the belt slips,
repeat the process or remove the outer clutch cover
to inspect the PVT system (see Chapter 6 “Clutching
(PVT)” for service and removal procedures).
IMPORTANT: If the vehicle has ingested a large
amount of water into the PVT system and has not been
operated for a period of time, be sure to check the PVT
system components for water damage.
