CPS Replacement
1. If not done already; disconnect the CPS harness
connector (see “CPS Test”).

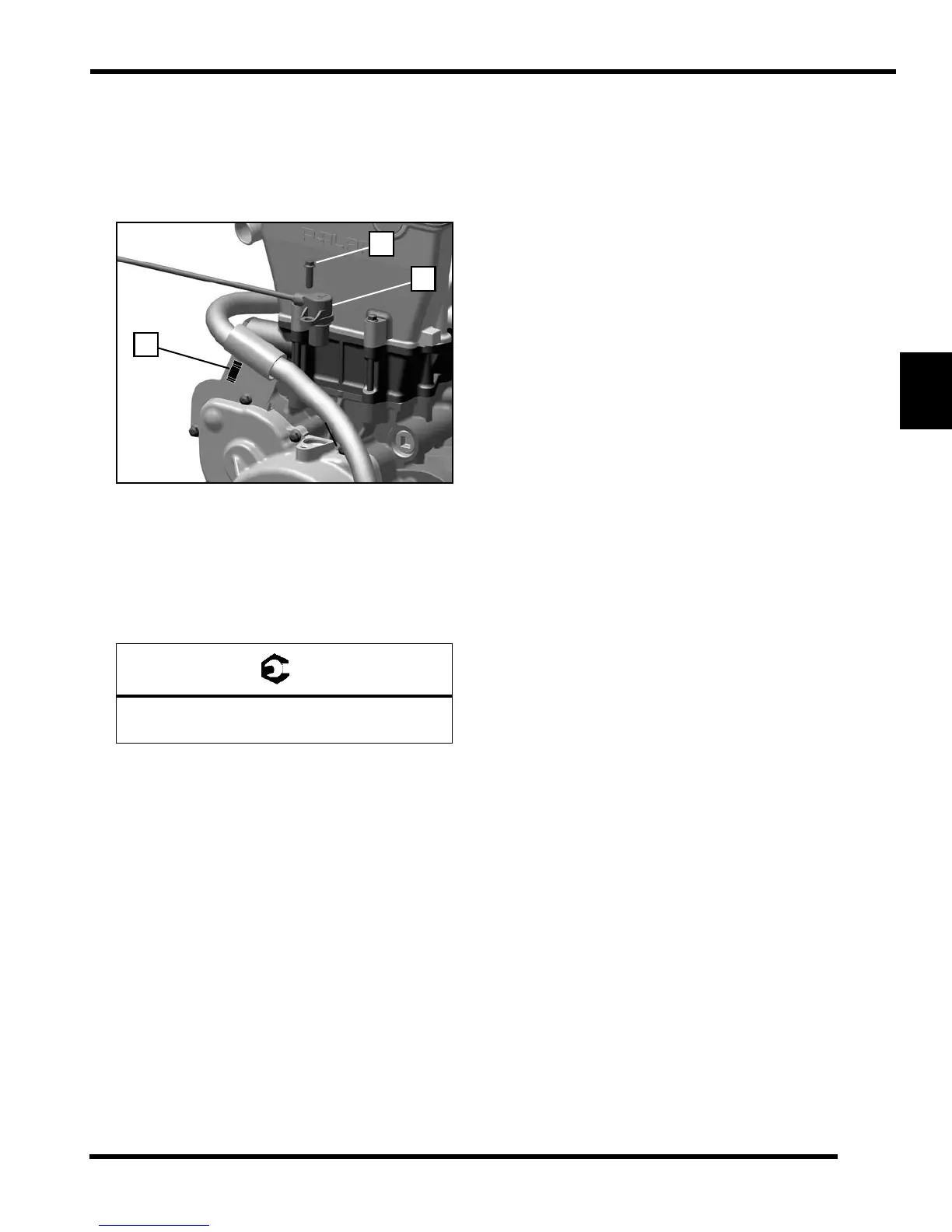

2. Using an 8mm socket, remove the CPS retaining bolt
(A) and remove the sensor (B) from the stator cover.
3. Unclip the wire harness retainer (C) and remove the
CPS harness from the retainer to allow replacement.
4. Install new sensor using a light coating of oil on the
O-ring to aid installation.
5. Torque the CPS retaining bolt to specification.
CPS Retaining Bolt:
106 in-lbs (12 Nm)
