3.47
ENGINE / COOLING
3
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

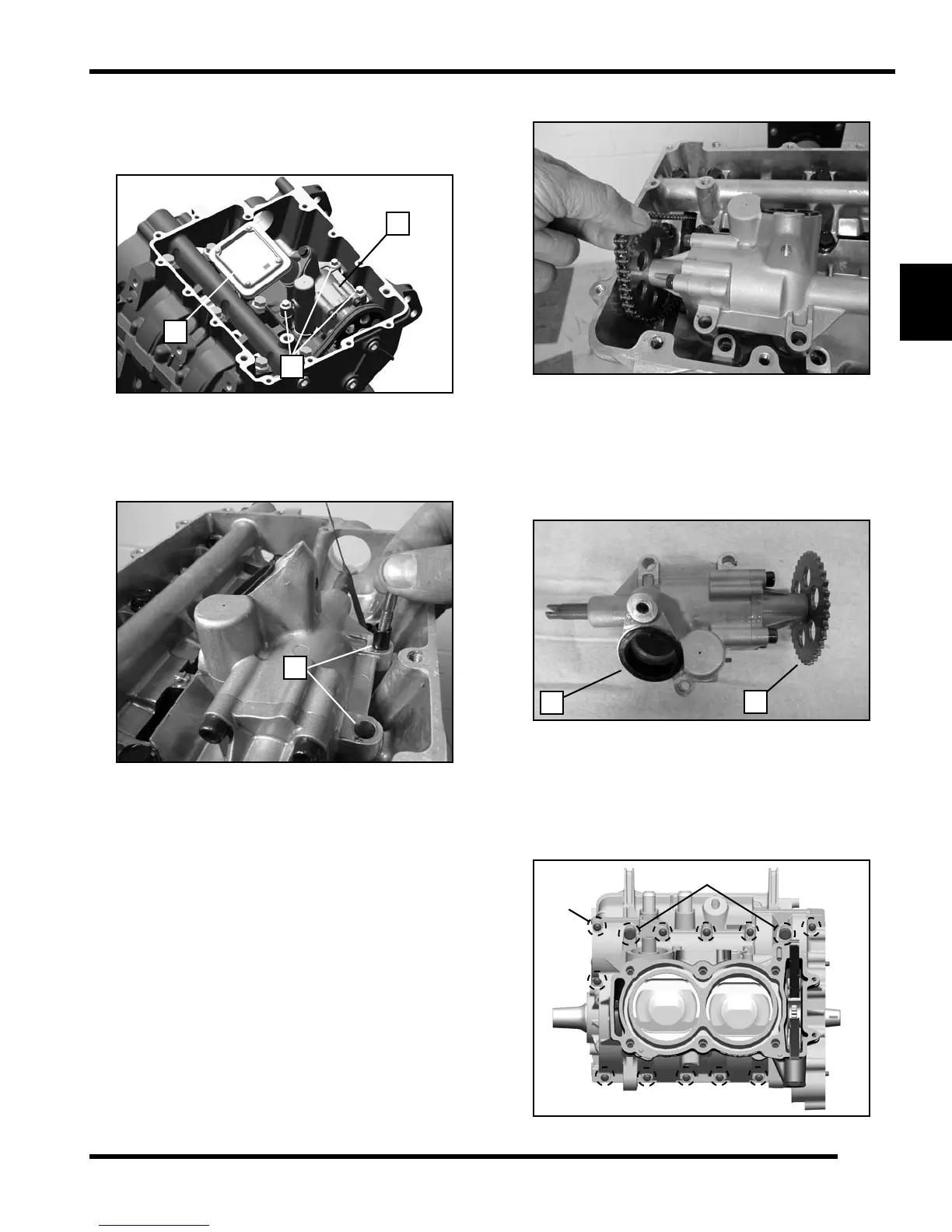

8. Remove and clean oil pump pick-up (E).
9. Remove the (3) bolts (F) that retain the oil pump (G)
to the crankcase.
10. Use one of the oil pump retaining bolts or a pen
magnet to extract the dowel pins (H) from the oil
pump. Doing so allows for oil pump removal without
having to remove the pump drive sprocket.
NOTE: If unable to extract the dowel pins from the
oil pump, the oil pump sprocket must be removed.
Access the sprocket bolt by removing the case plug.
11. Lift the oil pump drive chain and remove the oil pump.
12. Visually inspect the oil pump and drive sprocket (I) for
wear or damage. Replace oil pump drive chain and
sprocket if worn or damaged. If any part of the oil pump
is damaged, the entire assembly must be replaced.
Replace the oil pump seal (J) during crankcase
assembly.
NOTE: Oil pump assembly is non-serviceable
13. Rotate the engine so the cylinder is facing up.
14. Remove the (11) M6 and (2) M8 upper crankcase
bolts.
