7.12
FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

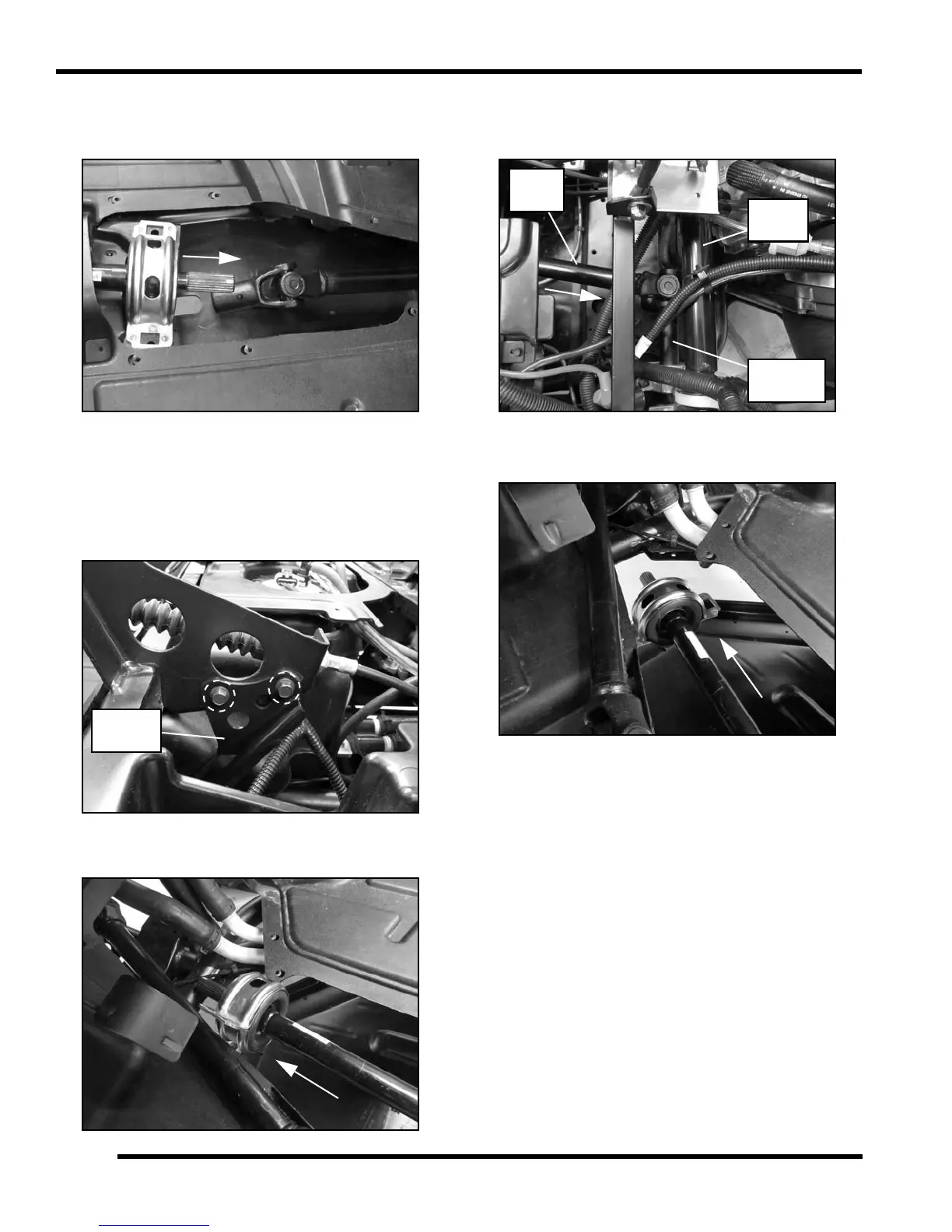

6. Once the front and rear propshafts have been
separated, slide the rear propshaft forward to remove
it from the transmission output shaft.
7. Remove the (7) fasteners retaining the front portion of
the vehicle skid plate. Allow the front portion of the
skid plate to hang down for propshaft removal.
8. Remove the (3) bolts retaining the gear selector
support bracket to the frame. Remove the support
bracket from the vehicle.
9. Pull the rear propshaft towards the front of the vehicle
and position it as shown.
10. Position the rear propshaft yoke between the engine
mount tube and rear stabilizer bar to allow the
propshaft to be slid further back.
11. Remove the rear propshaft assembly from the vehicle
through the skid plate.
IMPORTANT: Do not attempt to separate the support
bearing assembly from the rear propshaft. Doing so
will cause damage to the support bearing and rubber
isolator. Remove the rear propshaft from the vehicle
as an assembly.
12. Proceed to “Rear Propshaft Installation”.
Stabilizer
Bar
Mount
Tube
Rear
Shaft
To Next Page
