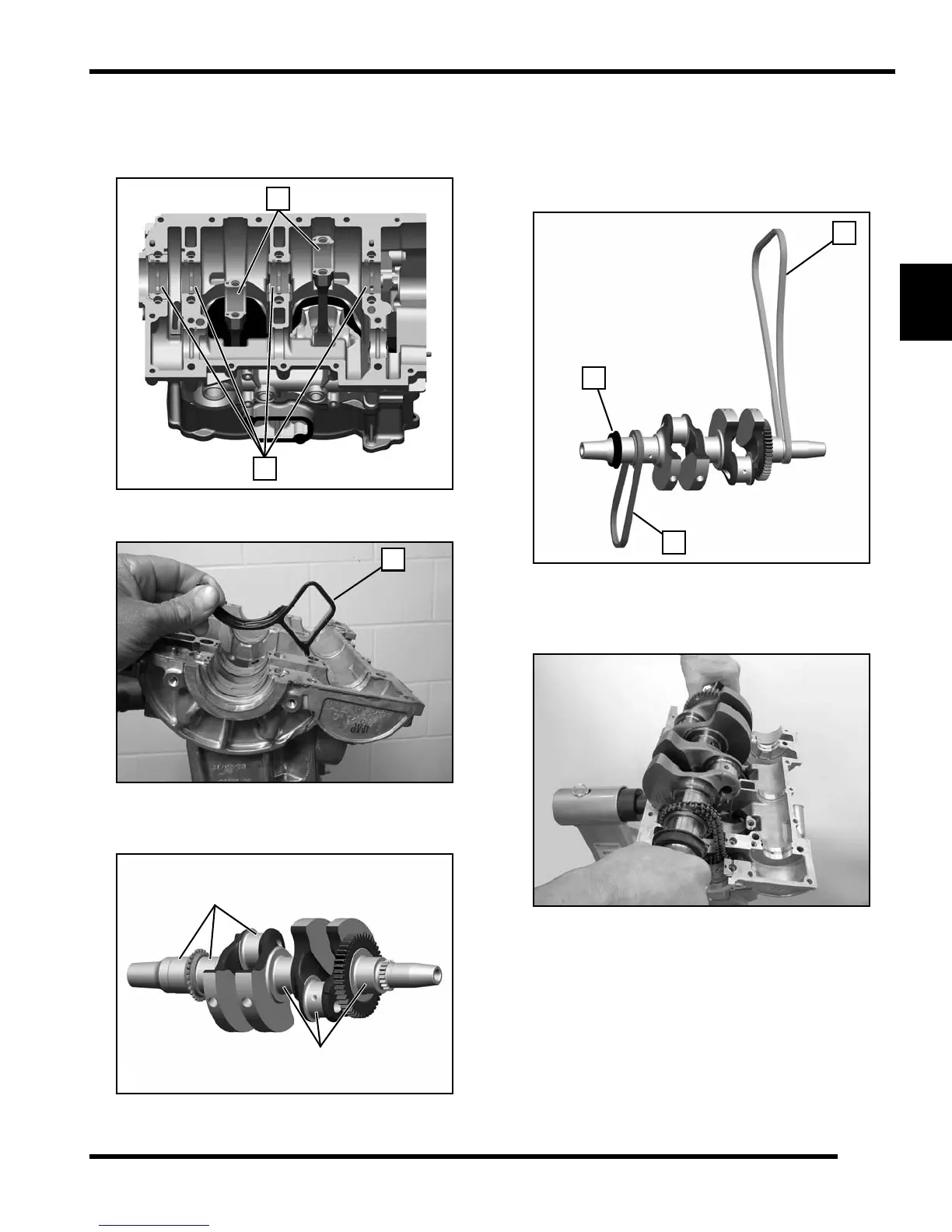

4. Align tab of new connecting rod bearings (B) with the
slot in the connecting rod stem and connecting rod
end cap. Press bearing insert firmly into place. Repeat
for the other connecting rod.
5. Install oil drain diverter (C) into the upper crankcase.
6. Apply Polaris PS-4 engine oil to each main and rod
bearing journal of crankshaft.
7. Loop cam chain (D) and oil pump drive chain (E) over
crankshaft sprockets.
8. Apply Polaris PS-4 engine oil to the new crankshaft
oil seal (F) and install the seal on the PTO end of the
crankshaft.
9. Carefully lower the crankshaft into upper crankcase.
Guide connecting rods onto the rod journals of
crankshaft as necessary.
10. Adjust the PTO crankshaft seal so it rests properly in
the upper crankcase.
11. Clean bolt hole threads in connecting rod to remove
all oil.
Apply
Engine Oil
Apply
Engine Oil
