3.78
ENGINE / COOLING
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

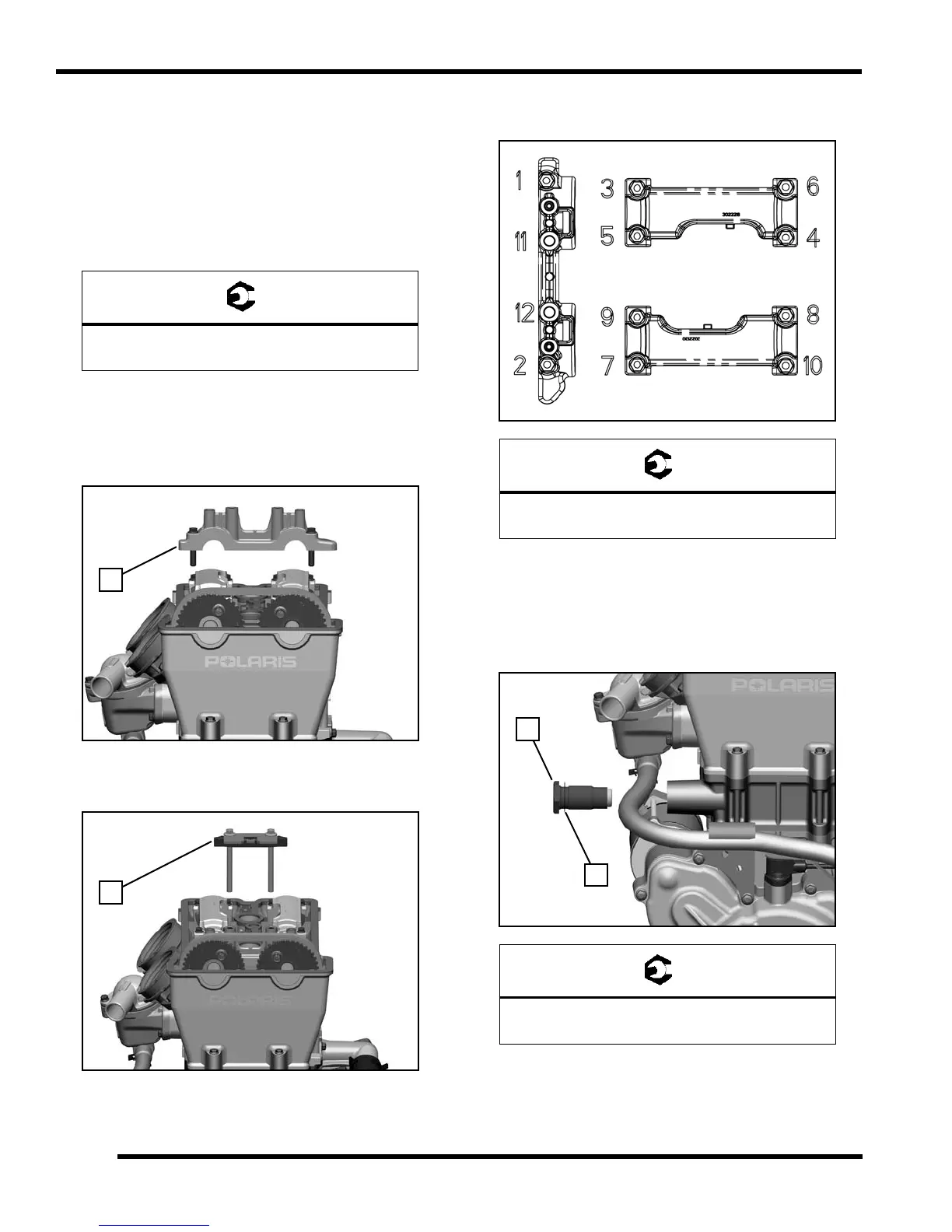

14. If timing marks are not aligned, remove sprockets and
correct alignment.
15. Remove the Cylinder Holding & Camshaft Timing
Plate (PU-50563) from the end of the camshafts.
16. Rotate the engine using the flywheel and install the
remaining bolt in each camshaft sprocket. Torque the
sprocket bolts to specification.
17. Rotate the engine using the flywheel and torque the
remaining sprocket bolts to specification.
18. Install the front camshaft carrier (E) and (2) outer
retaining bolts.
19. Install the fixed cam chain guide (F) and (2) retaining
bolts.
20. Torque the camshaft carriers bolts in sequence to
specification.
21. Apply Polaris PS-4 engine oil to the cam chain
tensioner bore prior to assembly. Use a new tensioner
sealing washer (G).
22. Install the hydraulic cam chain tensioner (H) into the
cylinder and torque to specification.
23. Rotate crankshaft through two revolutions and verify
camshaft timing is correct.
= T
Camshaft Sprocket Bolts:
14 ft-lbs (19 Nm)
E
F
= T
Camshaft Carrier Bolts:
89 ± 9 in-lbs (10 ± 1 Nm)
= T
Cam Chain Tensioner:
29.5 ± 3 ft-lbs (40 ± 4 Nm)
H
G
