4.29
ELECTRONIC FUEL INJECTION
4
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

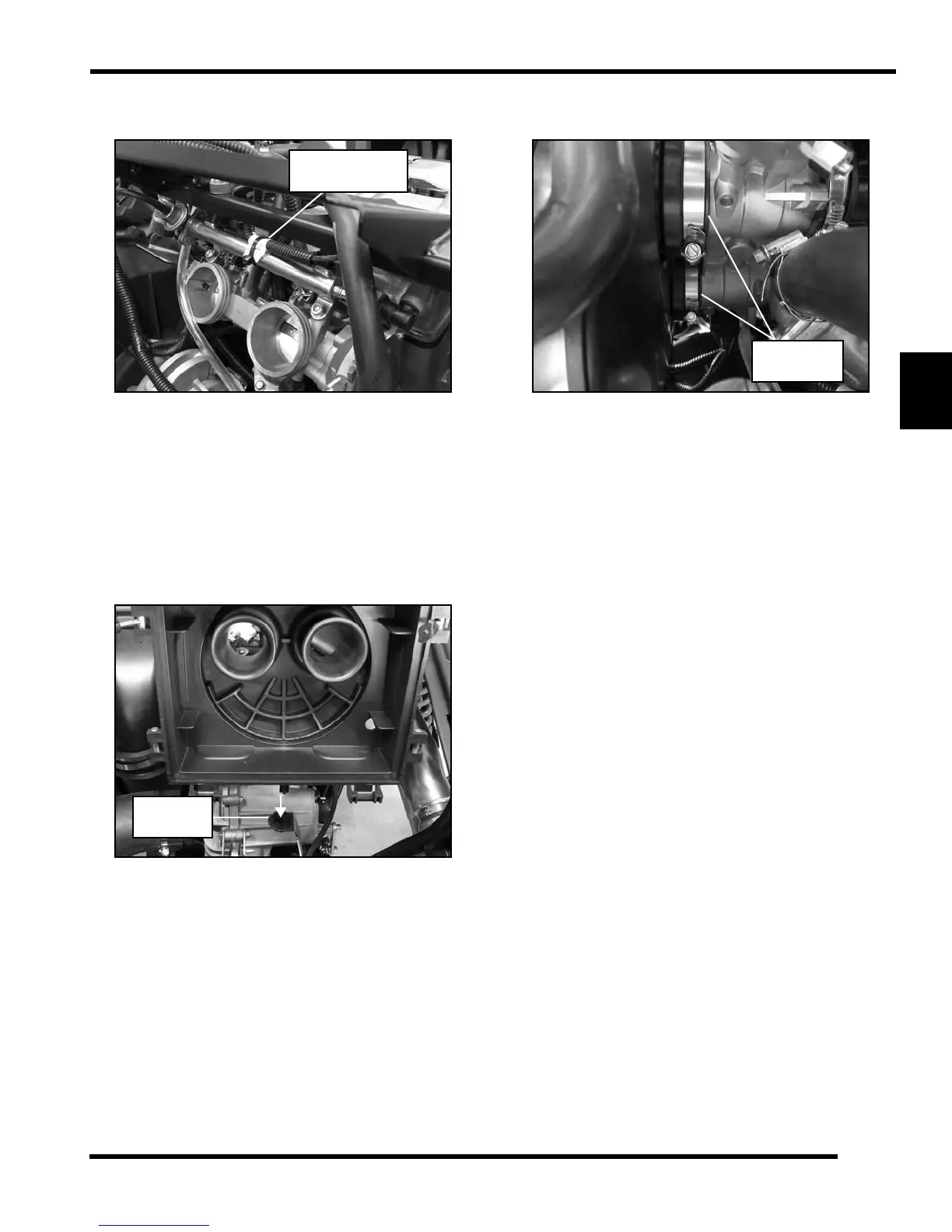

18. Use a tie strap to retain the harness leads to the fuel
rail.
19. Reconnect the negative battery cable and reinstall the
driver’s seat.
20. Start the engine briefly and inspect the fuel rail and
injectors for fuel leaks.
21. Reinstall the air box assembly:
• Be sure the lower air box post is placed properly
into the rubber grommet.
• Be sure the air box boots fully seat onto the dual
throttle body before tightening the hose clamps.
22. Reinstall the breather into the air box and tighten the
hose clamps retaining the air box to the throttle body
assembly.
23. Reinstall the (2) screws retaining the air box
assembly.
24. Position the intake hose onto the air box and tighten
the hose clamp.
25. Reinstall the cargo box access panel.
