7.25
FINAL DRIVE
7
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

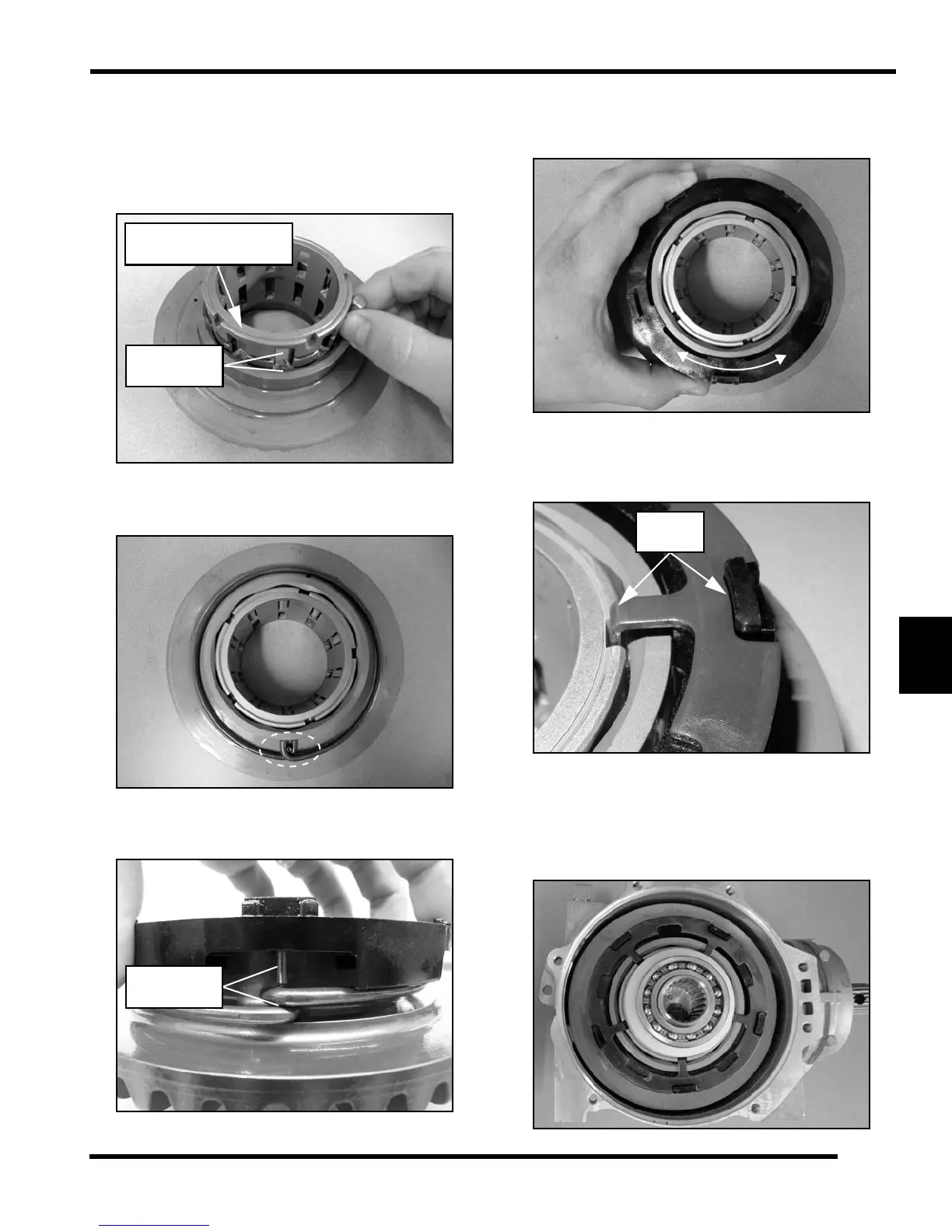

5. Carefully install the rollers into the roll cage assembly
while installing the assembly into the clutch housing.
NOTE: Install roll cage so that the ring gear grooves
line up with the roll cage windows (see below). Be
sure role cage top groove is facing upward.
6. Install the torsion spring by wrapping each leg of the
spring around the dowel pin on the ring gear.
7. Align spring retainer dowel pin with ring gear dowel pin
and install the retainer on top of the torsion spring.
8. Check the action of the torsion spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
9. Install armature plate. Be sure all of the armature plate
tabs are fully engaged into the roll cage assembly and
that it is resting properly on the torsion spring retainer.
NOTE: Verify armature plate tabs are in the roll cage
slots and that it rests properly on the spring retainer.
10. Carefully install the ring gear and roll cage assembly
into the gearcase housing.
Roll Cage Top Groove
Facing Upward
Align during
installation
Align during
installation
Engage
Tabs
