7.28
FINAL DRIVE
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

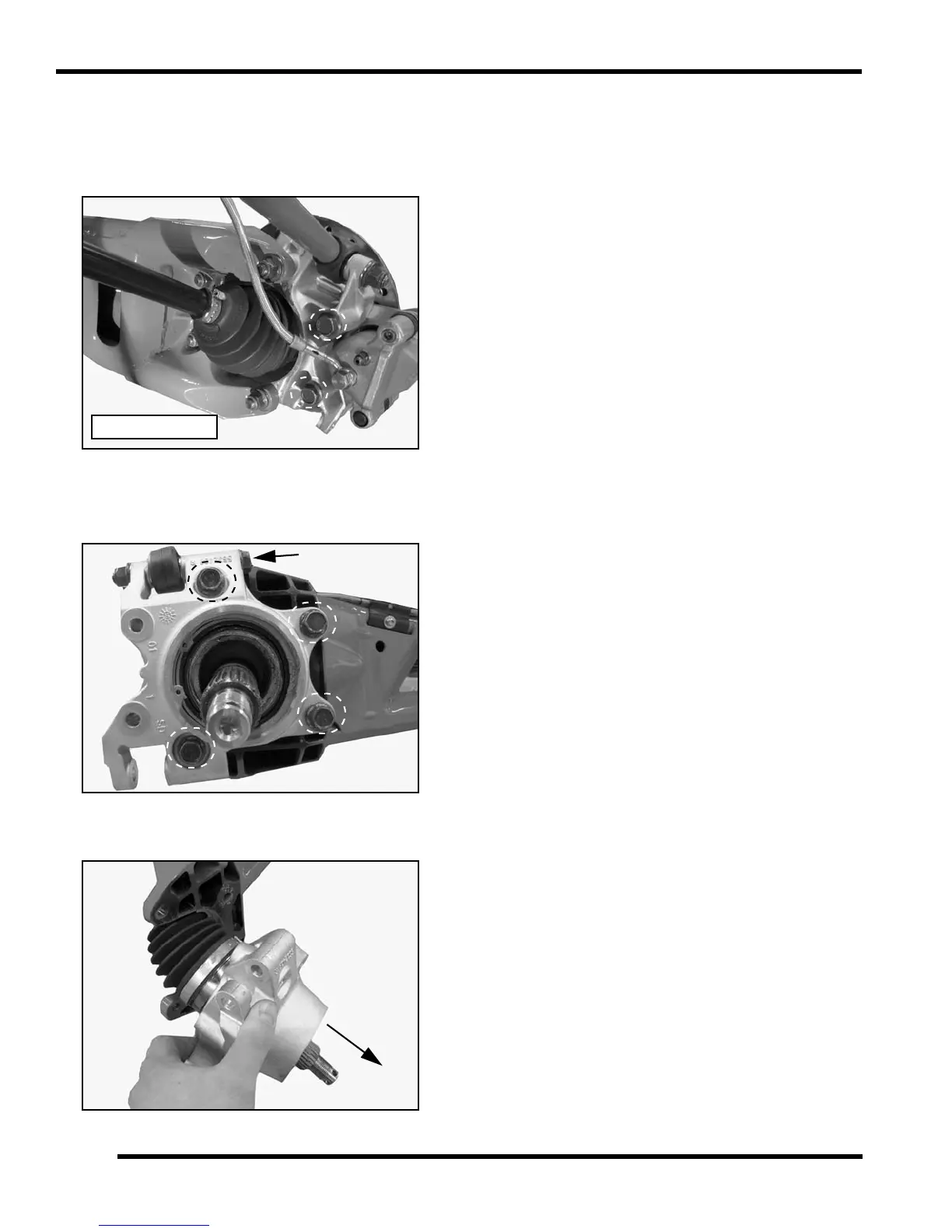

6. Remove the two brake caliper mounting bolts.
Remove the rear brake caliper assembly.
CAUTION: Do not hang the caliper by the brake line.
Use wire to hang caliper to prevent damage to the
brake line.
7. Remove the rear wheel hub and brake disk assembly.
8. Remove the (5) remaining bolts that attach the rear
bearing carrier to the trailing arm. Discard the nuts.
9. Remove the bearing carrier from the rear drive shaft
and trailing arm.
10. Rotate bearing by hand and check for smooth
rotation. Visually inspect bearing for moisture, dirt, or
corrosion.
NOTE: Due to extremely close tolerances and
minimal wear, the bearings must be inspected
visually, and by feel. While rotating bearings by
hand, inspect for rough spots, discoloration, or
corrosion. The bearings should turn smoothly and
quietly, with no detectable up and down movement
and minimal movement sideways between inner and
outer race.
11. Replace bearing if moisture, dirt, corrosion, or
roughness is evident.
