8.15
TRANSMISSION
8
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

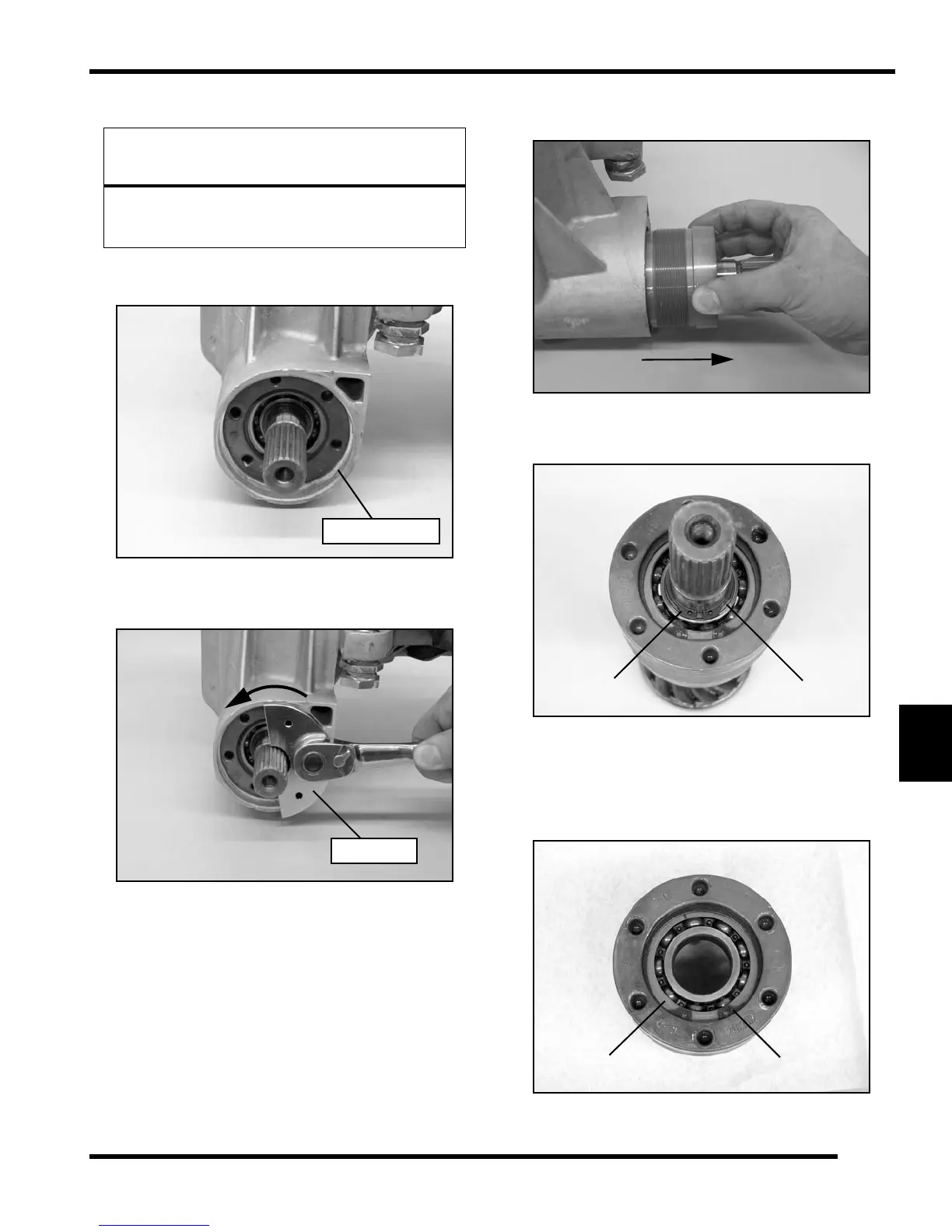

Snorkel Shaft Removal / Disassembly
25. Extract the seal from the snorkel shaft to access the
snorkel tube for removal.
26. Using the Snorkel Tool (PA-50231), fully loosen the
snorkel tube.
27. Remove the snorkel tube and shaft assembly from the
transmission case.
28. Remove the snap ring (Y) and shim (Z) from the
snorkel shaft.
29. Use an arbor press to remove the snorkel tube from
the snorkel shaft.
30. Remove the snap ring (A) and shim (B) retaining the
bearing in the snorkel tube.
CAUTION
The pinion shaft must be removed prior to removing
the snorkel shaft assembly. Failure to remove pinion
shaft, will result in damage to the snorkel shaft.
Seal Removed
PA-50231
YZ
B
A
