3.25
ENGINE / COOLING
3
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

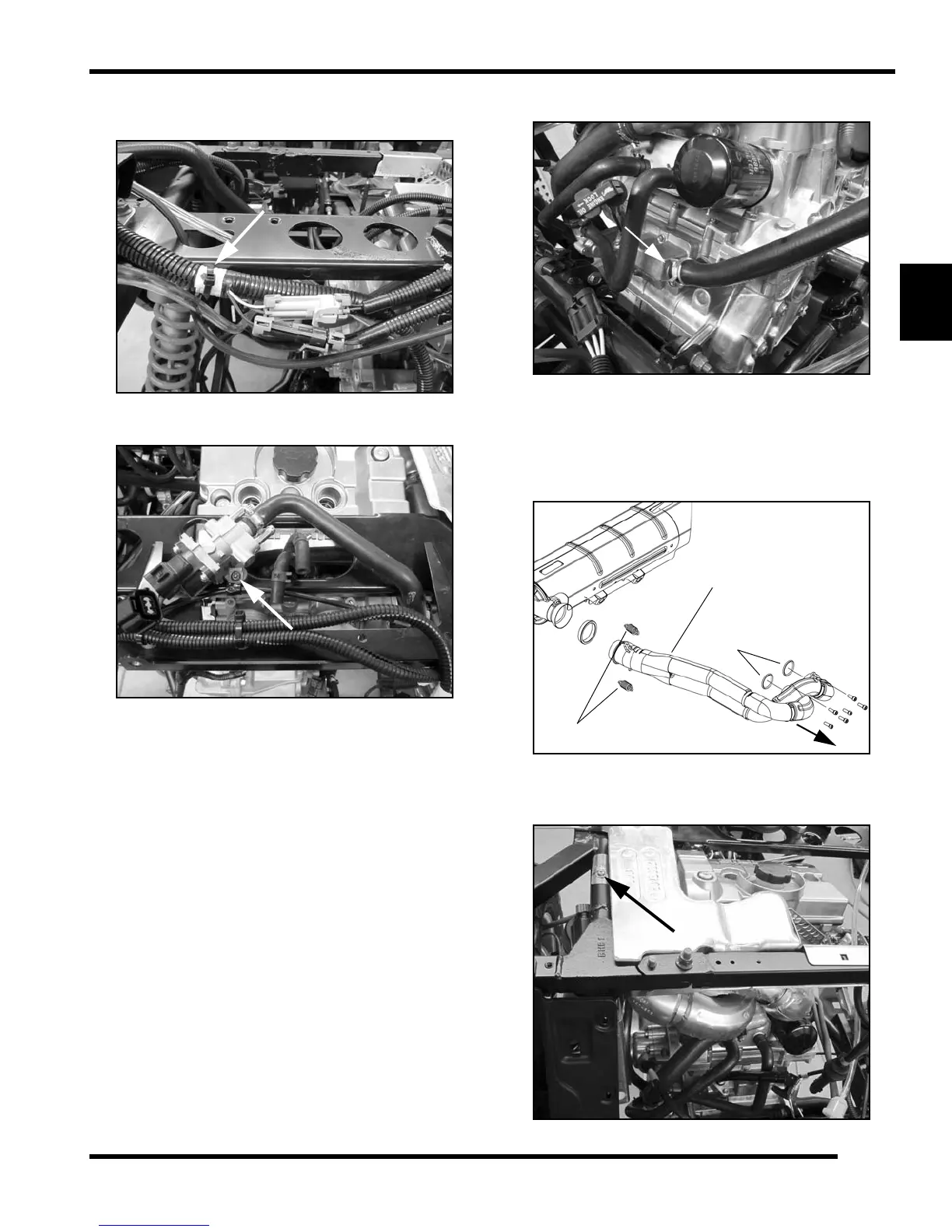

16. Remove wire tie retaining harness to rear cross
member.
17. Remove screw retaining throttle cable guide.
18. Disconnect fuel lines and remove throttle body
assembly (see Chapter 4). Make note of line routing
for installation.
19. Remove spark plug wires from the engine.
IMPORTANT: The spark plug wires are marked with
MAG and PTO. Note during installation procedure.
20. Remove the breather hose from the crankcase.
21. Remove the (6) fasteners that attach the exhaust
head pipe to the engine. Remove the (2) exhaust
springs that attach the head pipe to the muffler.
Remove exhaust head pipe towards the front of the
vehicle. Discard exhaust gaskets.
22. Remove heat shield mounting screw, and remove
heat shield from vehicle.
Exhaust
Head Pipe
Springs
Discard
To Next Page
