3.33
ENGINE / COOLING
3
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

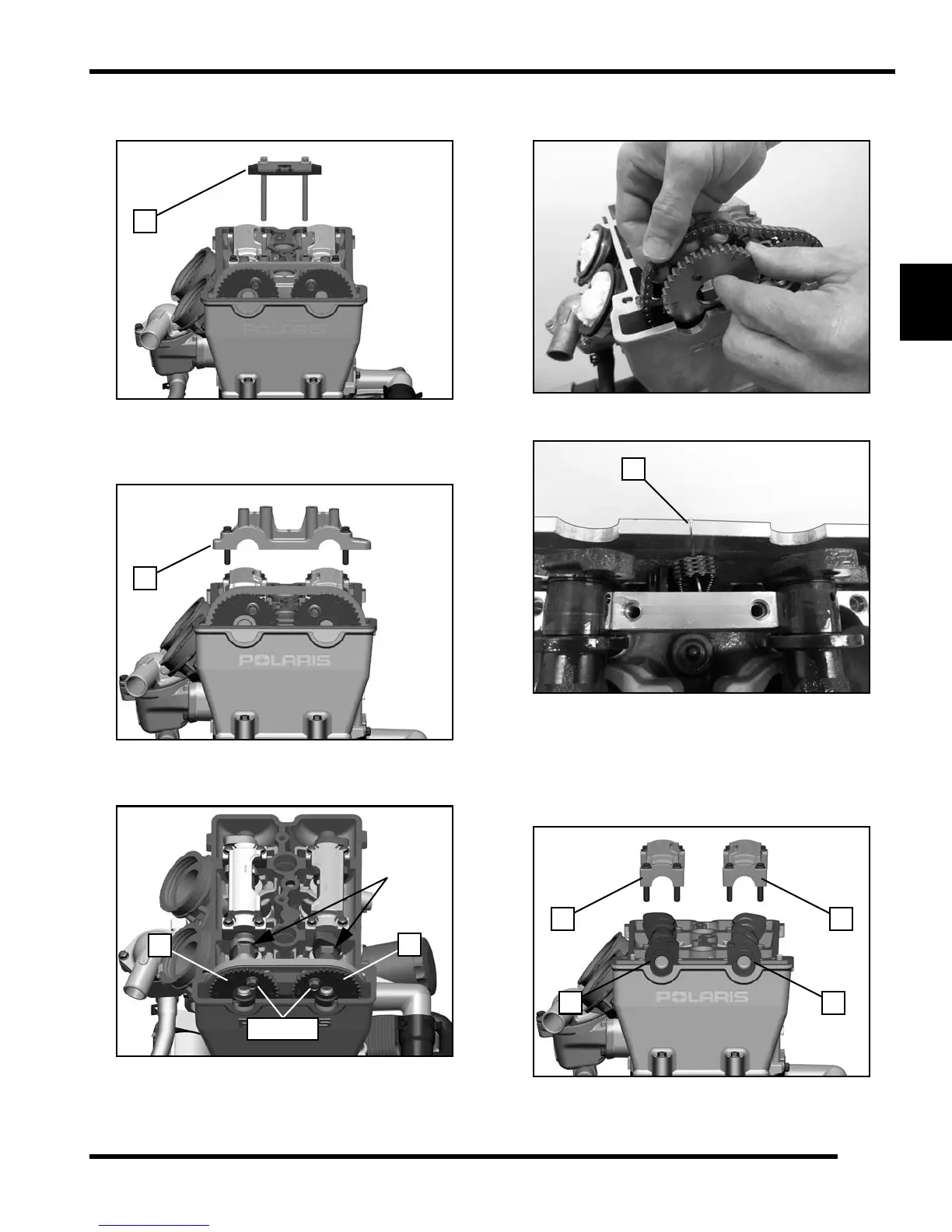

3. Remove the (2) bolts retaining the fixed cam chain
guide (G) and remove the assembly from the engine.
4. Remove the remaining (2) bolts that retain the front
camshaft carrier (H) and carefully lift the carrier off the
camshafts.
5. Hold camshafts with an open-end wrench, and
remove the top bolt from the camshaft sprockets (I).
6. Rotate the engine using the flywheel and remove the
remaining bolt from each camshaft sprocket (I).
7. Lift the chain and sprockets off the camshafts to allow
each sprocket to be removed.
8. Using a paperclip (J) or other tool, hold cam chain up.
NOTE: The crankcase has a built-in lower guide to
prevent the chain from falling off the crankshaft.
9. Evenly loosen the (4) bolts retaining each rear
camshaft carrier (K) and carefully lift the carriers off
the camshafts.
