Vertical Encoder Sensor
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Left cover (
page 55).
•
Canopy cover (
page 56).
• Work carefully to avoid bending or scratching the edge of the vertical encoder wheel.

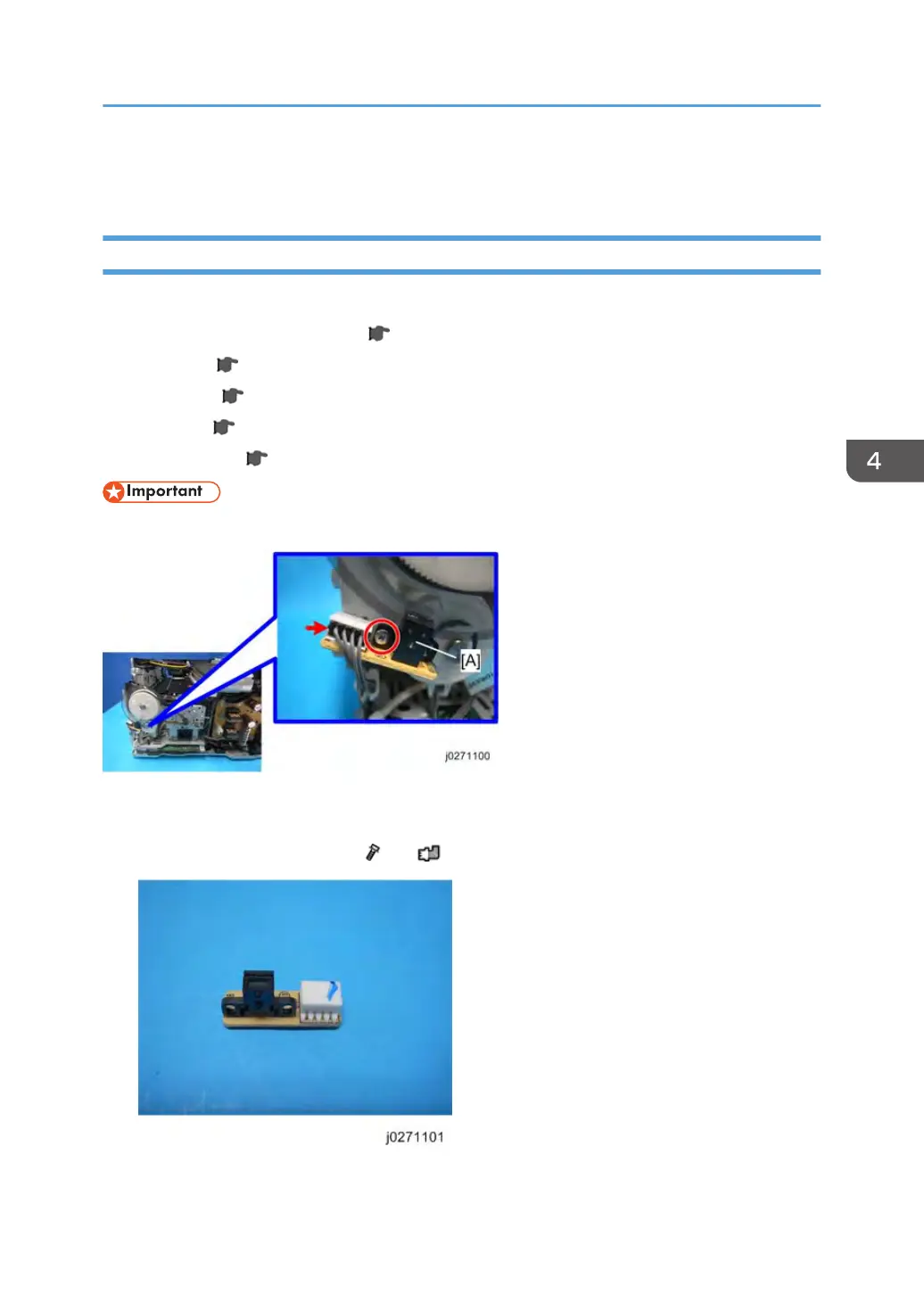

1. The vertical encoder sensor is near the left rear corner of the machine below the vertical encoder
wheel.
2.
The vertical encoder sensor [A] (
x 1, x 1).
