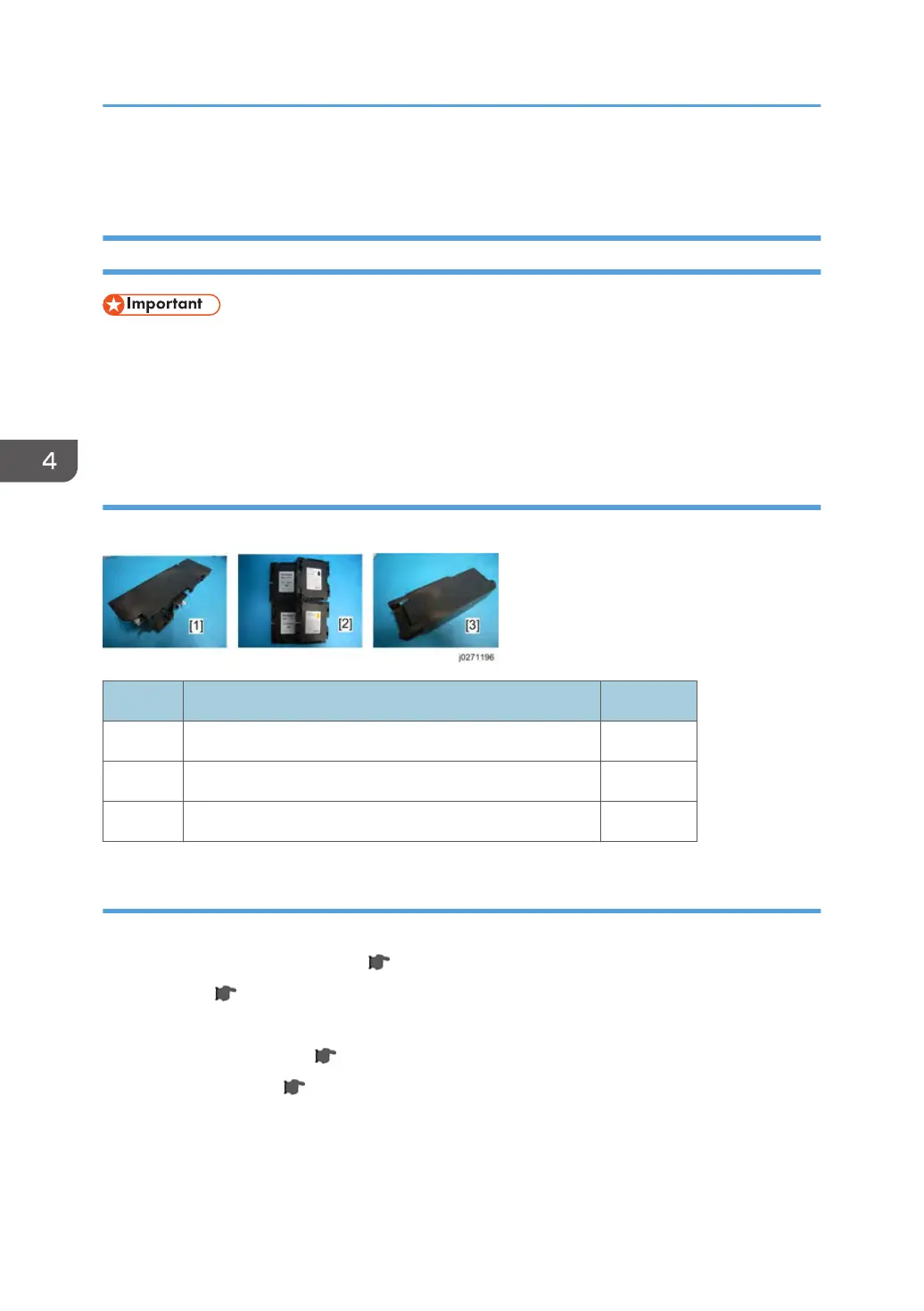

Ricoh Aficio SG 3100DN - Replacing the Carriage Unit; Accessories; Preparation

Carriage Unit
Replacing the Carriage Unit
• The model J035 (SG K3100) does not require the replacement of the carriage.
•
The whole machine should be replaced when the carriage unit is out of order.
• Refer to the following procedures to remove the carriage of the J035 machine temporarily in order
to remove other components.
Accessories
Check the items in the carriage replacement kit with the list below.
Item Qty
[1] Carriage Unit 1
[2] Ink Cartridges 4
[3] Ink Collector Unit 1
Preparation
• Switch off the machine.
•
Duplex unit (J028/J029/J035) (
page 48).
•
All covers (
page 50).
•
All ink cartridges.
• Horizontal encoder strip (
page 71).
1.
Unlock the carriage (
page 62).
2.
Push the carriage to the left side of the printer.
4. Replacement and Adjustment
130
