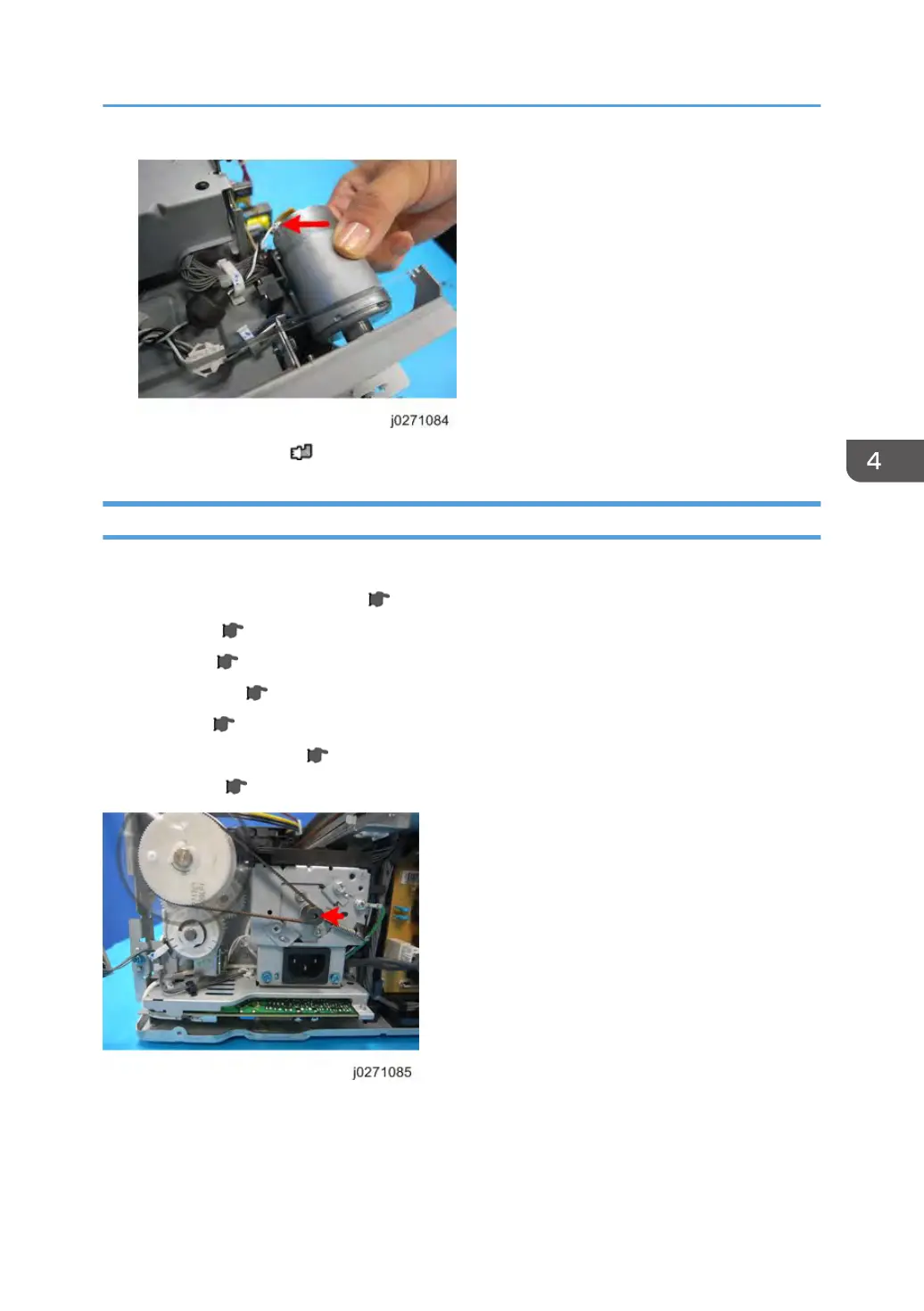

5. The horizontal motor ( x 1).
Vertical Motor
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Canopy cover (
page 56).
•
Left cover (
page 55).
•
Vertical encoder wheel (
page 69).
•
Feed clutch (
page 95).
1. The vertical motor is on the left side of the machine, behind the left frame.
Motors
91
