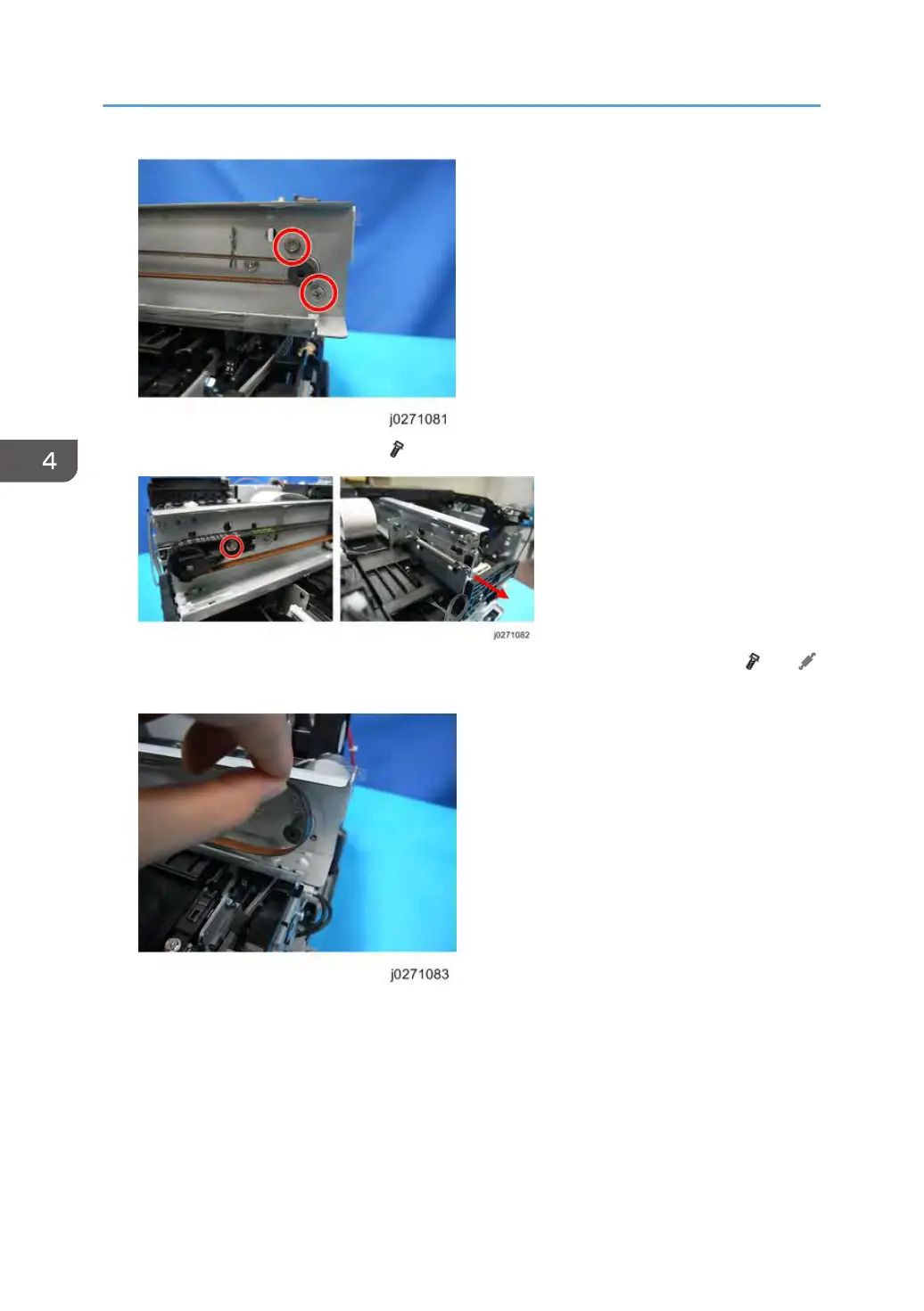

2. Remove the screws at the right end ( x 2).
3. Remove the screw at the left end, loosen the belt's tension, and then remove the spring. ( x 1,
x 1)
4. Remove the timing belt on the right end.
