Ricoh Aficio SG 3100DN - Bypass Drawer Connector

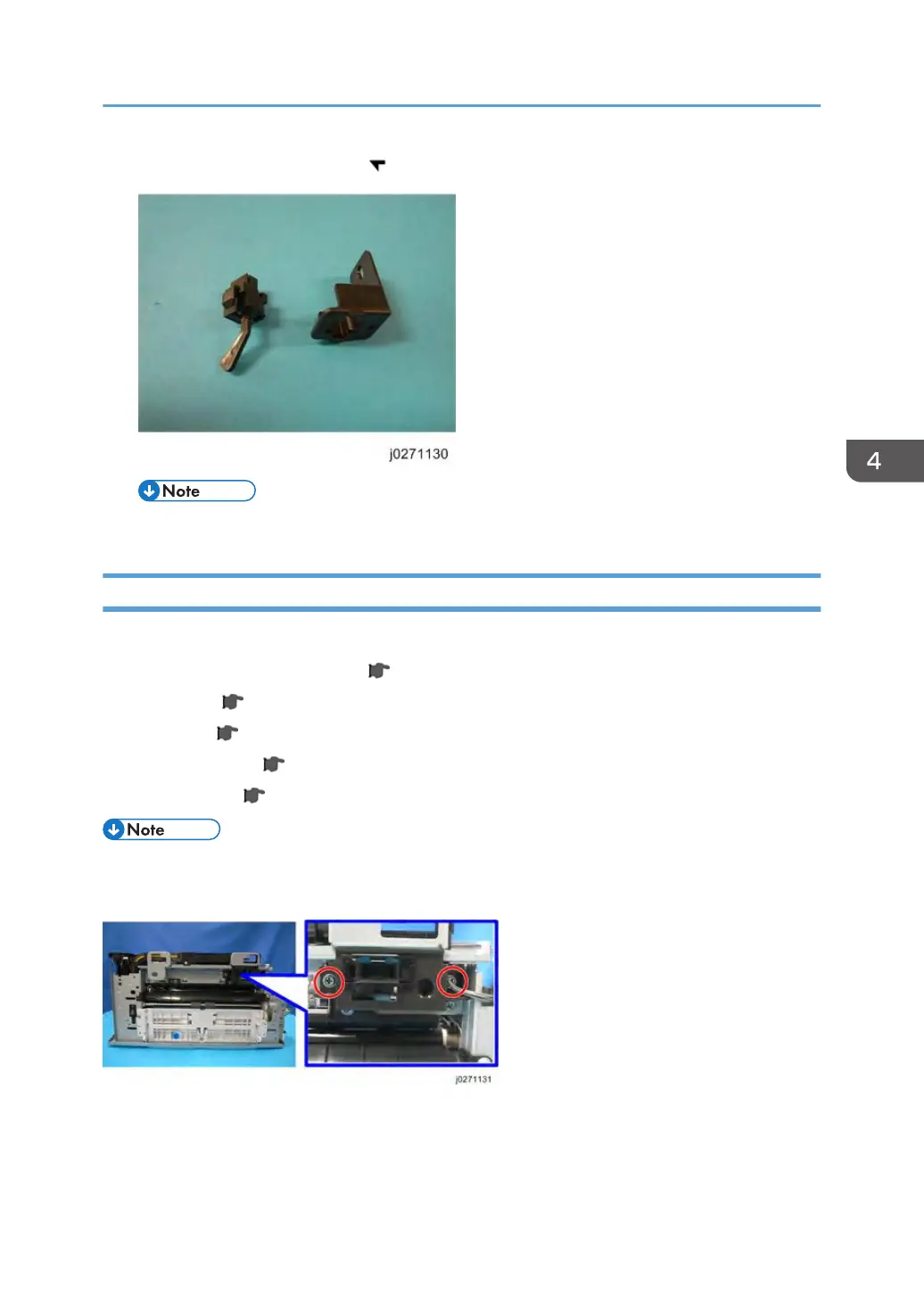

5. Separate the bracket and switch ( x 2).
• After re-installing the maintenance unit, execute manual cleaning.
Bypass Drawer Connector
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Fan, Fan bracket (
page 93).
•
Vertical motor (
page 91).
• The J027 machine has no bypass drawer connector.
J028/J029:
J035:
Sensors, Switches
115
