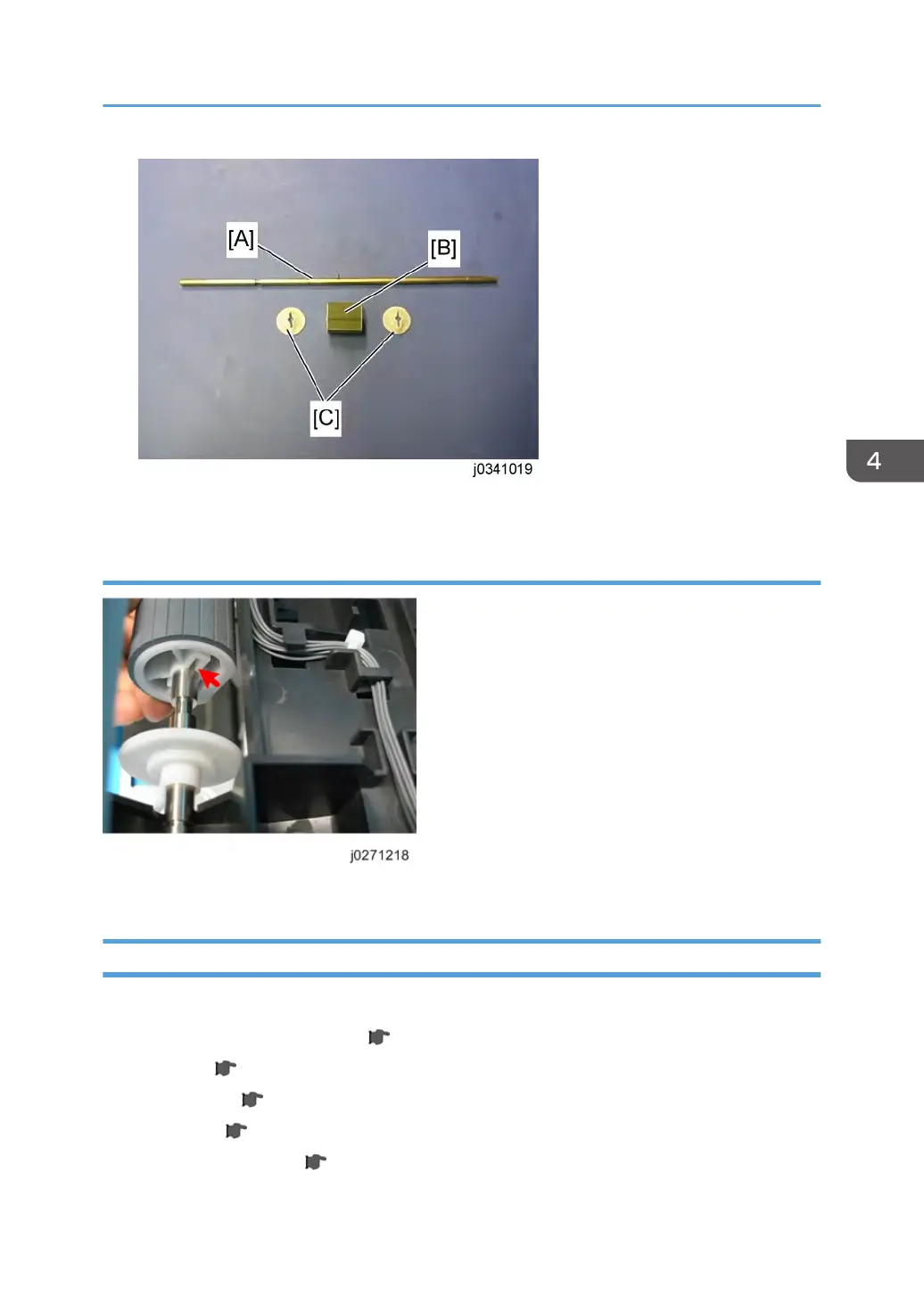

8. Remove the paper feed roller [B] and 2 press rollers [C] from the shaft [A].
Re-installation
1. When you mount the paper feed roller into the rod, mount the side with the fixing pin's guide first.
Connecting Rollers
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
All covers (
page 50).
•
Transport belt (
page 97).
•
Feed clutch (
page 95).
•
2nd registration sensor (
page 106).
Rollers
127
