Reinstallation of the vertical encoder wheel protection cover
• Route the harnesses as shown above.
•

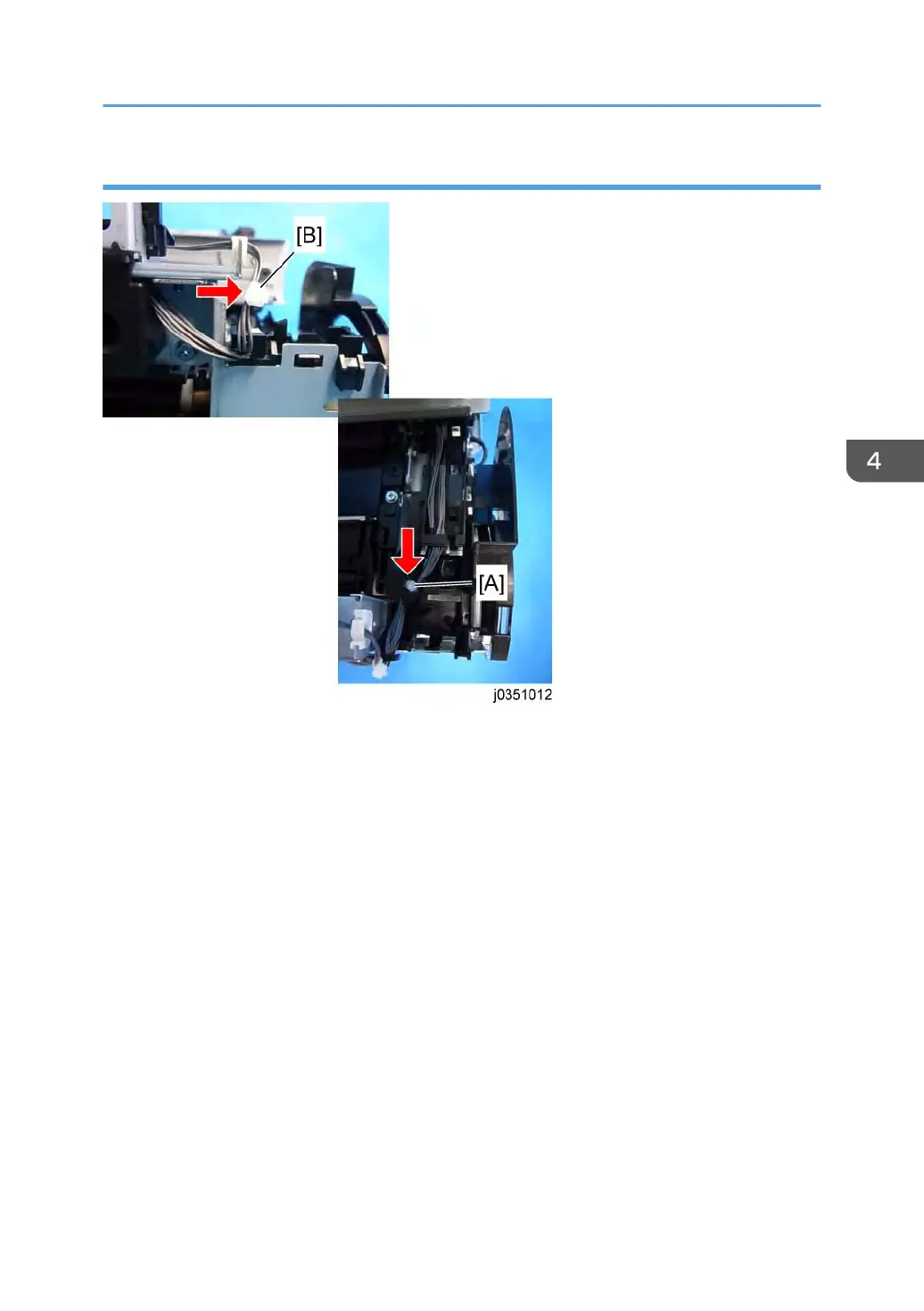

Binding points of each harness should be located at the point [A] [B] in the upper photo.
• Remove the bypass drawer connector before restoration works when it is difficult to route the
harnesses.
• The harness cover has two types. Make sure that these attaching places are correct and these are
securely reinstalled.
• Never touch the edge of the vertical encoder wheel when reinstalling the protection cover.
Encoders
77
