Boards
PSU
•
Always replace a PSU with the PSU designed for the machine.
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
All covers (
page 50).
•
Fan, Fan bracket (
page 93 "Fan, Fan Bracket").
1.

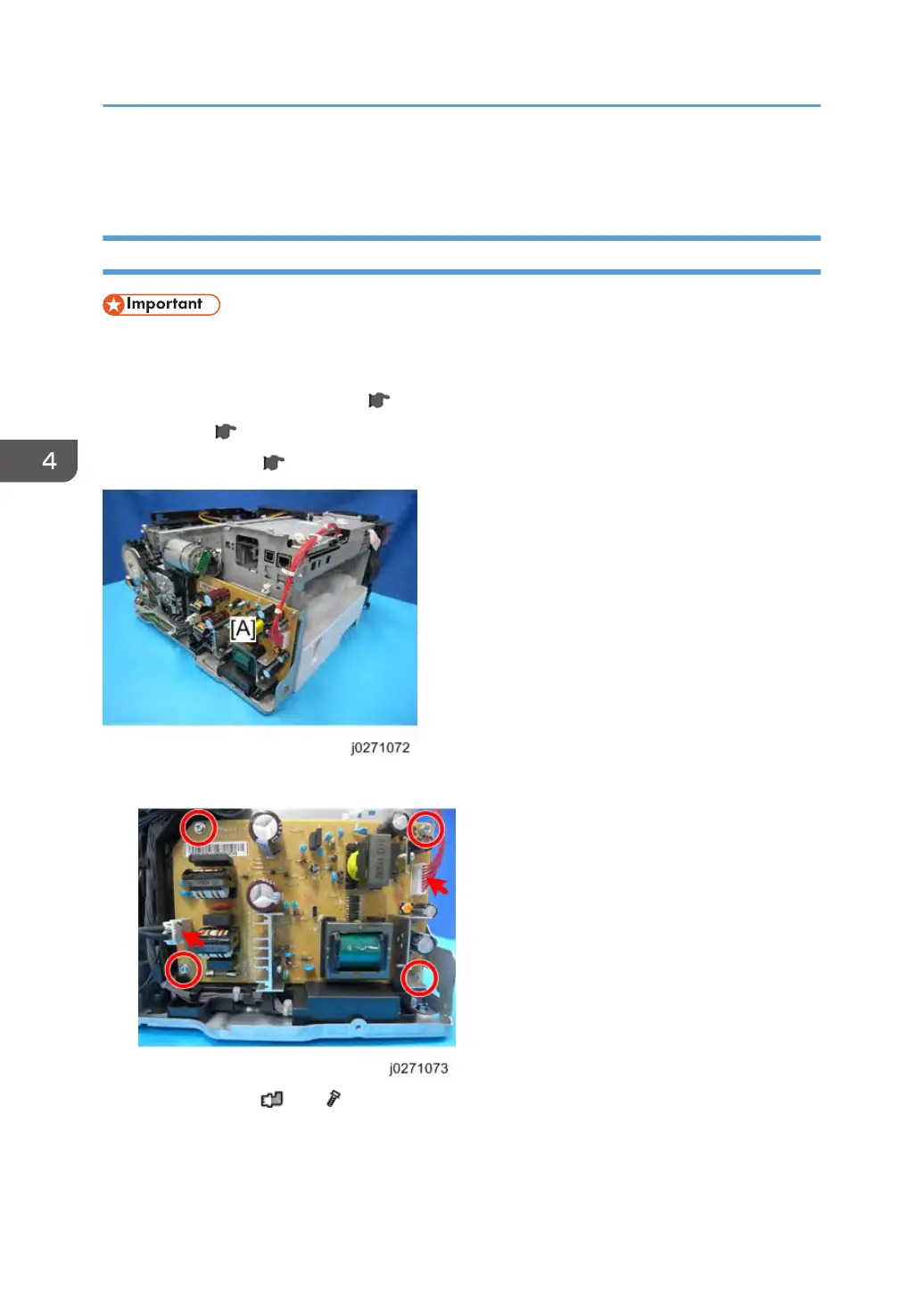

The PSU [A] is on the left front corner of the printer.
2.
Remove the PSU (
x 2,
x 4).
4. Replacement and Adjustment
78
79
