Horizontal Encoder Strip Cleaning
Clean the horizontal encoder strip if the following conditions occur:
•
Vertical white lines on an image
• Double image
• Broken vertical lines
• JAM 14

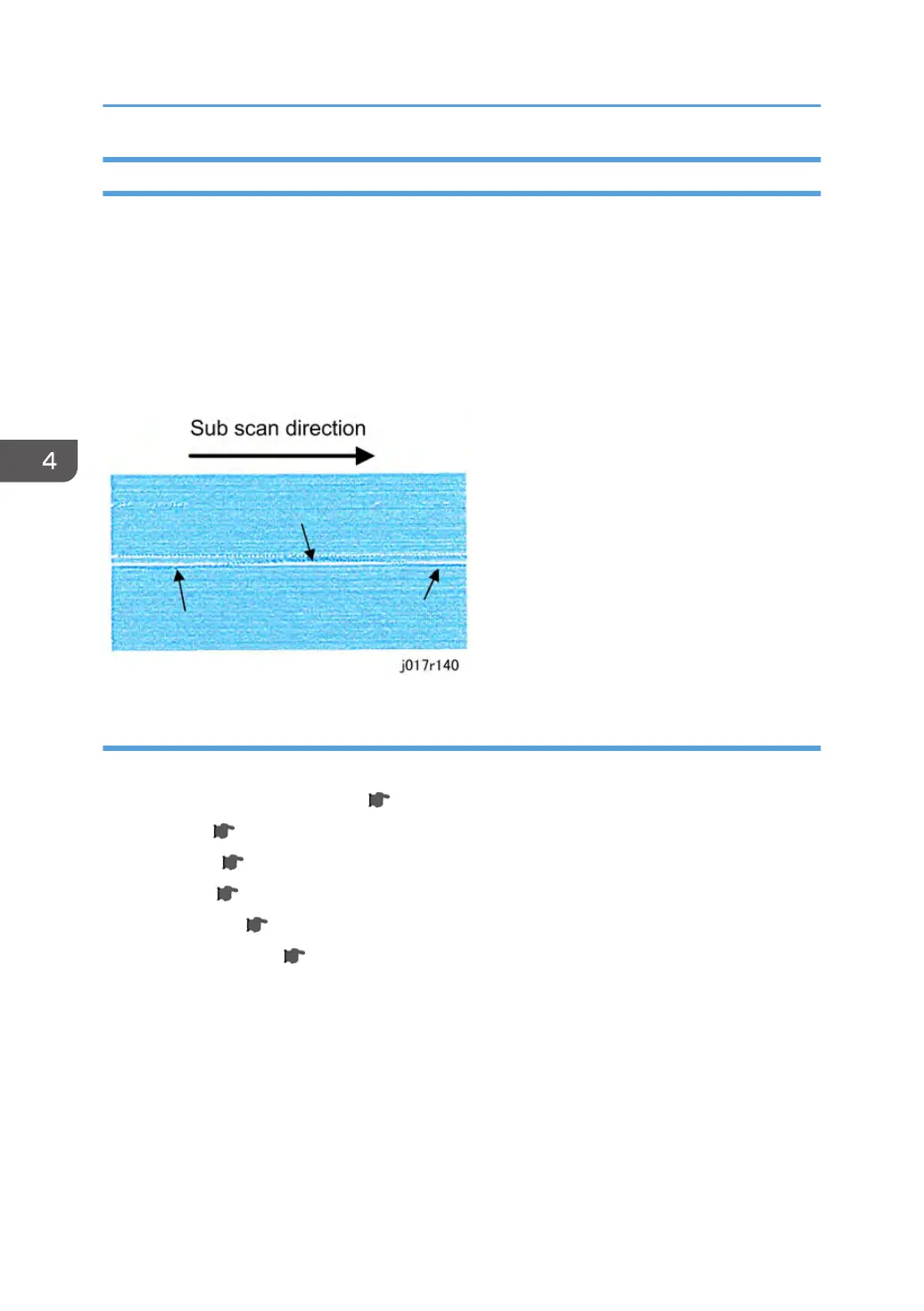

Sample image of horizontal white lines
Cleaning procedure
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
Left cover (
page 55).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Canopy cover (
page 56).
•
Unlock the carriage (
page 62).
1.
Push the carriage to the left side of the printer.
