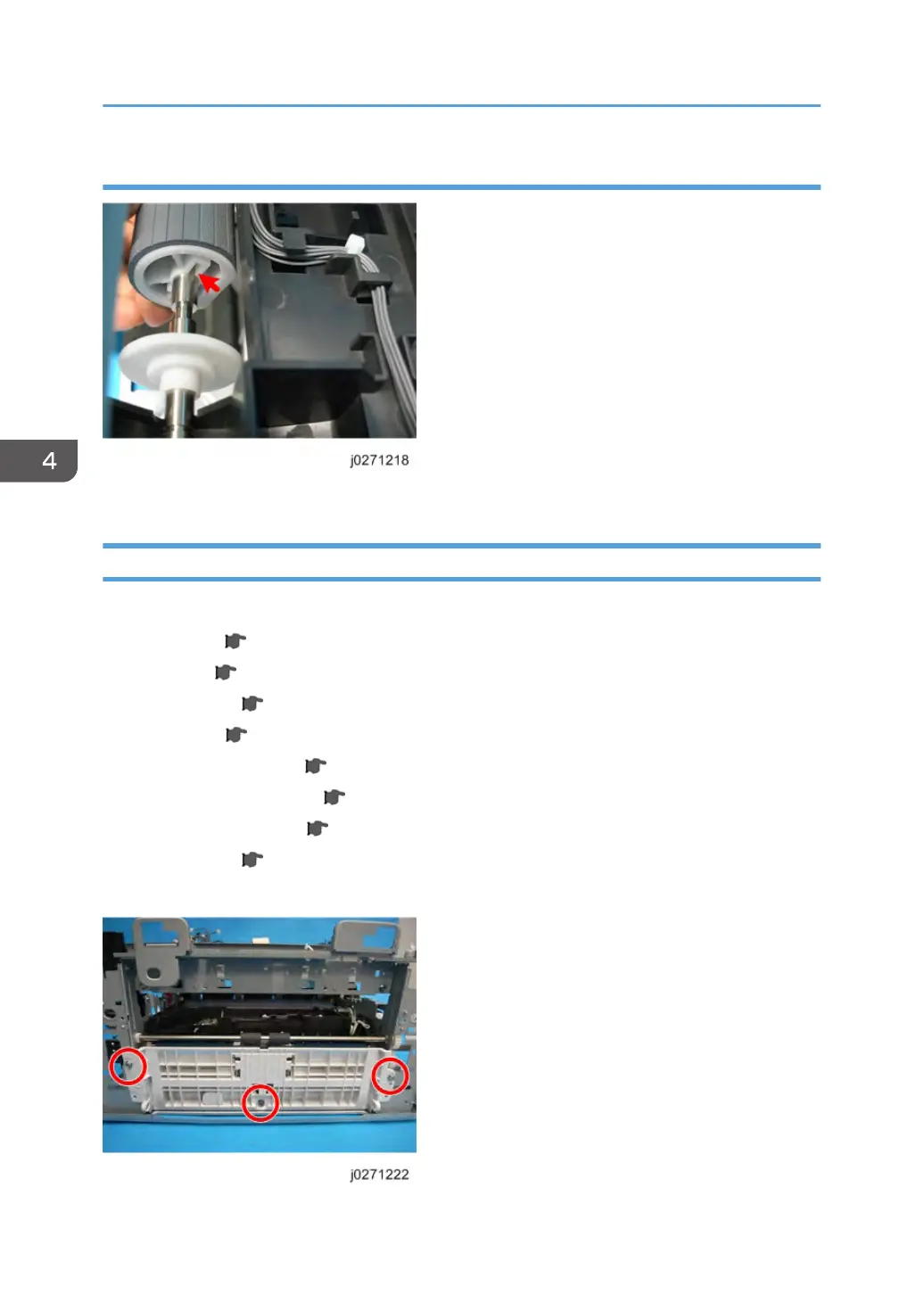

Re-installation
1. When you mount the paper feed roller into the rod, mount the side with the fixing pin's guide first.
Paper Feed Roller (J035)
Preparation:
•
Duplex unit (
page 48).
•
All covers (
page 50).
•
Transport belt (
page 97).
•
Feed clutch (
page 95).
•
2nd registration sensor (
page 106).
•
Bypass drawer connector (
page 115).
•
Vertical encoder wheel (
page 69).
•
Carriage Unit (
page 130).
•
Paper cassette.
4. Replacement and Adjustment
124
