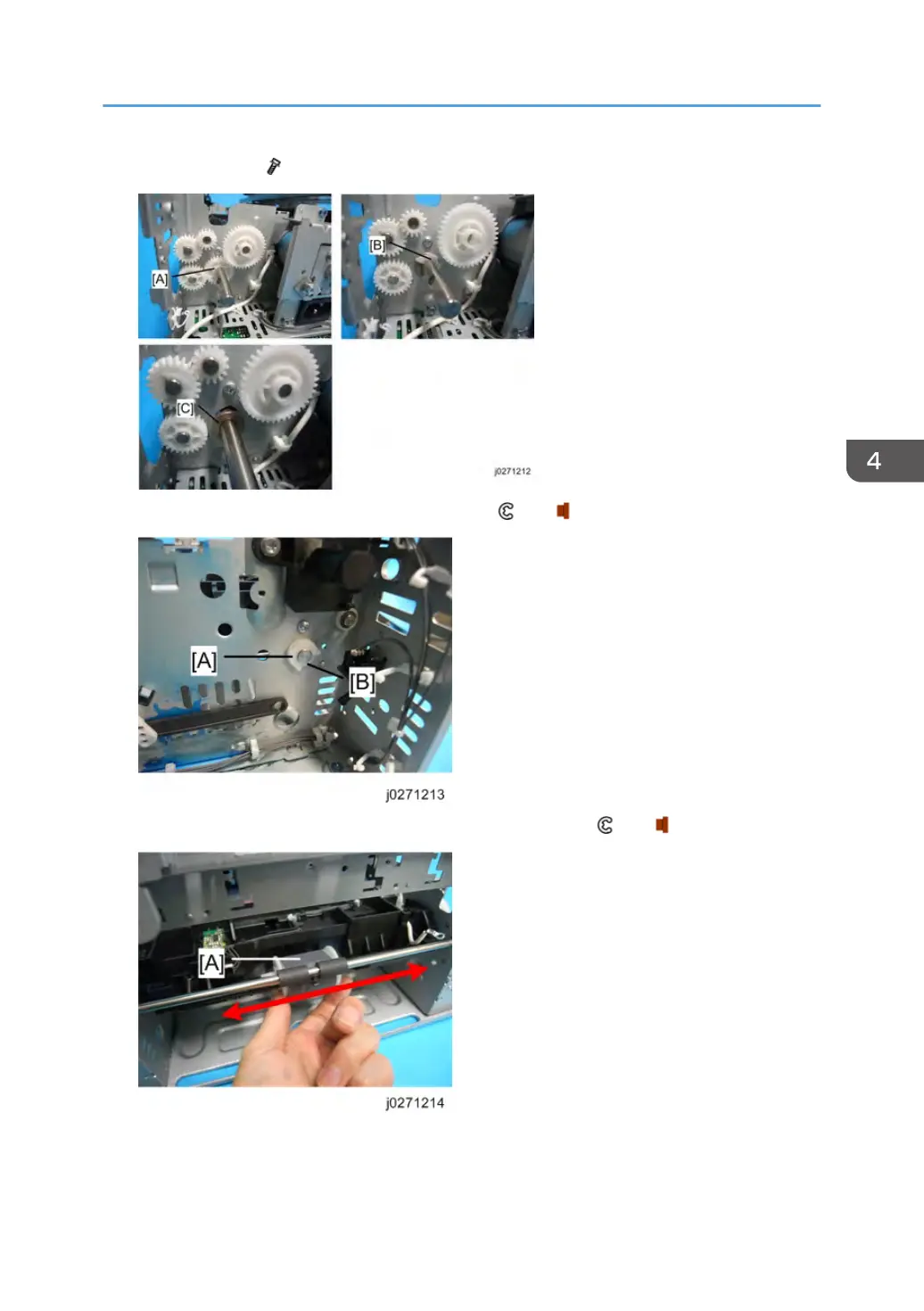

1.
The guide board (
x 3).
2.
The gear [A], E-ring [B] and bushing [C] (Gear x 1,
x 1,
x 1).
3.
Remove the E-ring [A] and white bushing [B] on the opposite side (
x 1,
x 1).
[A]: Paper Feed Roller
4.
The rod is released from its fastened position.
Rollers
125
126
128
