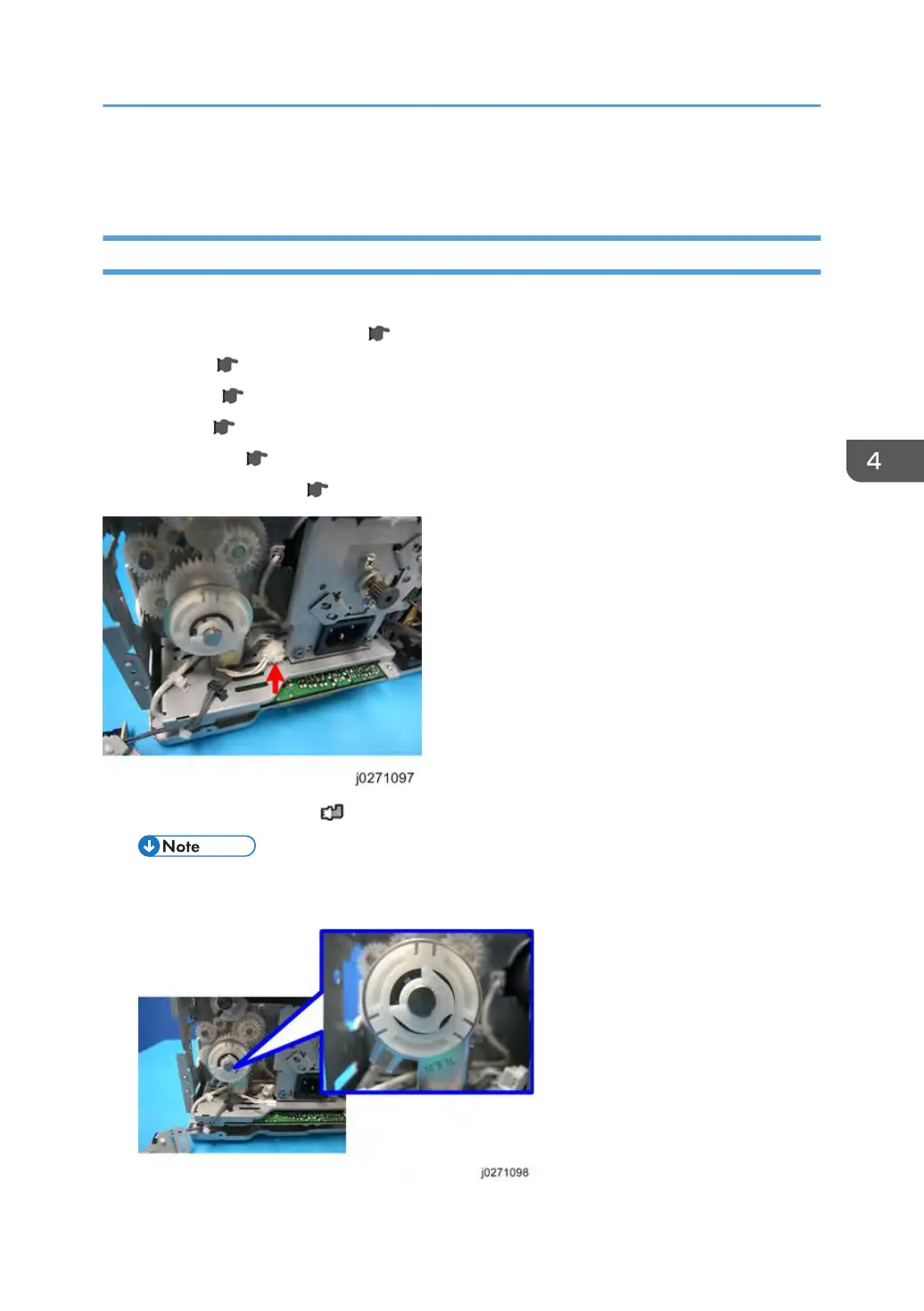

Ricoh Aficio SG 3100DN - Clutches; Feed Clutch

Clutches
Feed Clutch
Preparation
•
Duplex unit (J028/J029/J035) (
page 48).
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Left cover (
page 55).
•
Canopy cover (
page 56)
•
Vertical encoder wheel (
page 69)
1. Disconnect the connector ( x 1).
• If the connector cannot be removed because it is behind the AC bracket, open the AC
bracket.
Clutches
95
