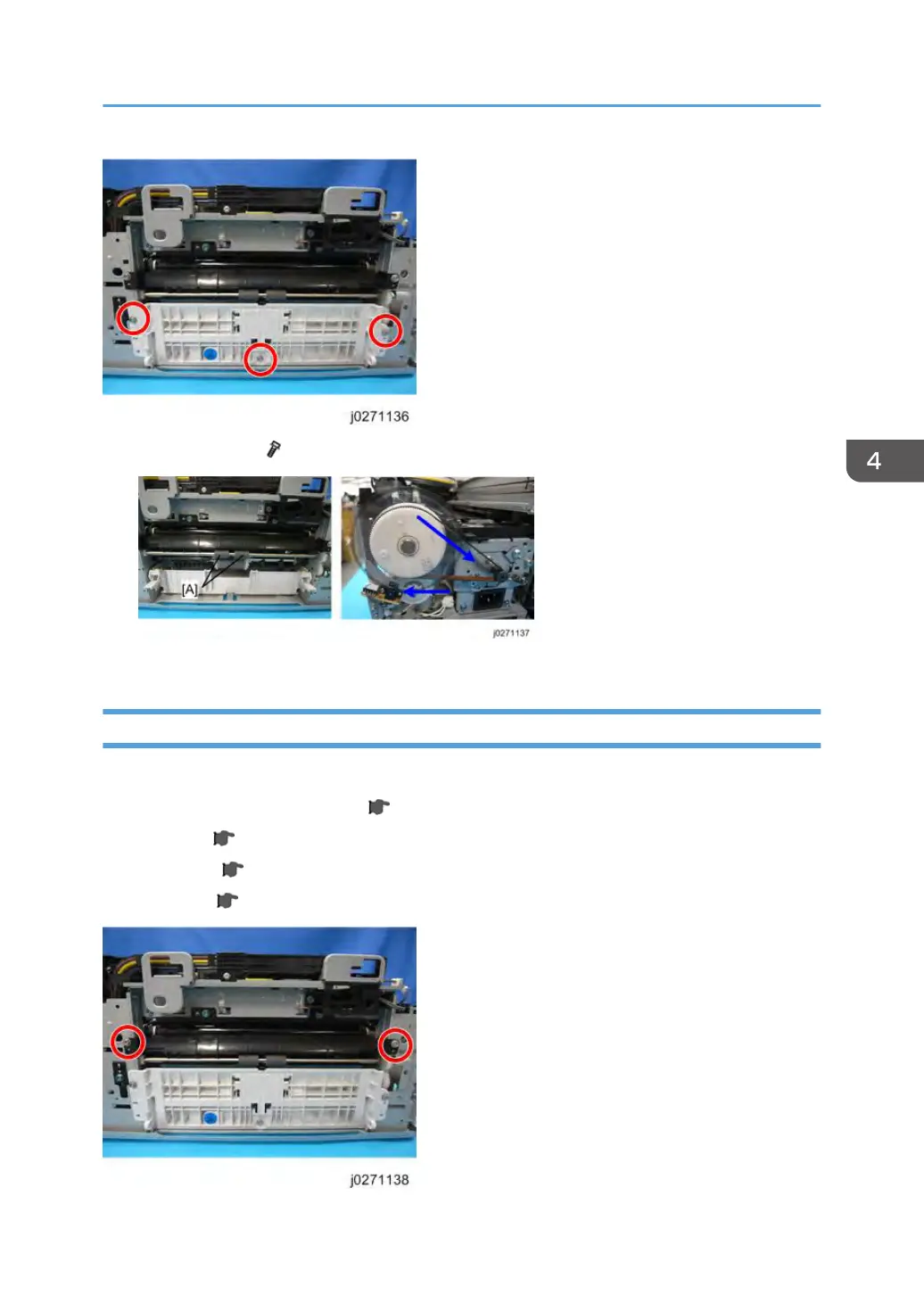

1.
The guide board (
x 3).
2.
Move the timing belt by hand to rotate the connecting rollers [A] as you wipe it with a dry cloth.
Transport Belt Cleaning
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
Left cover (
page 55).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Top cover (
page 51 "Rear Cover, Top Cover").
Cleaning
149
150
152
