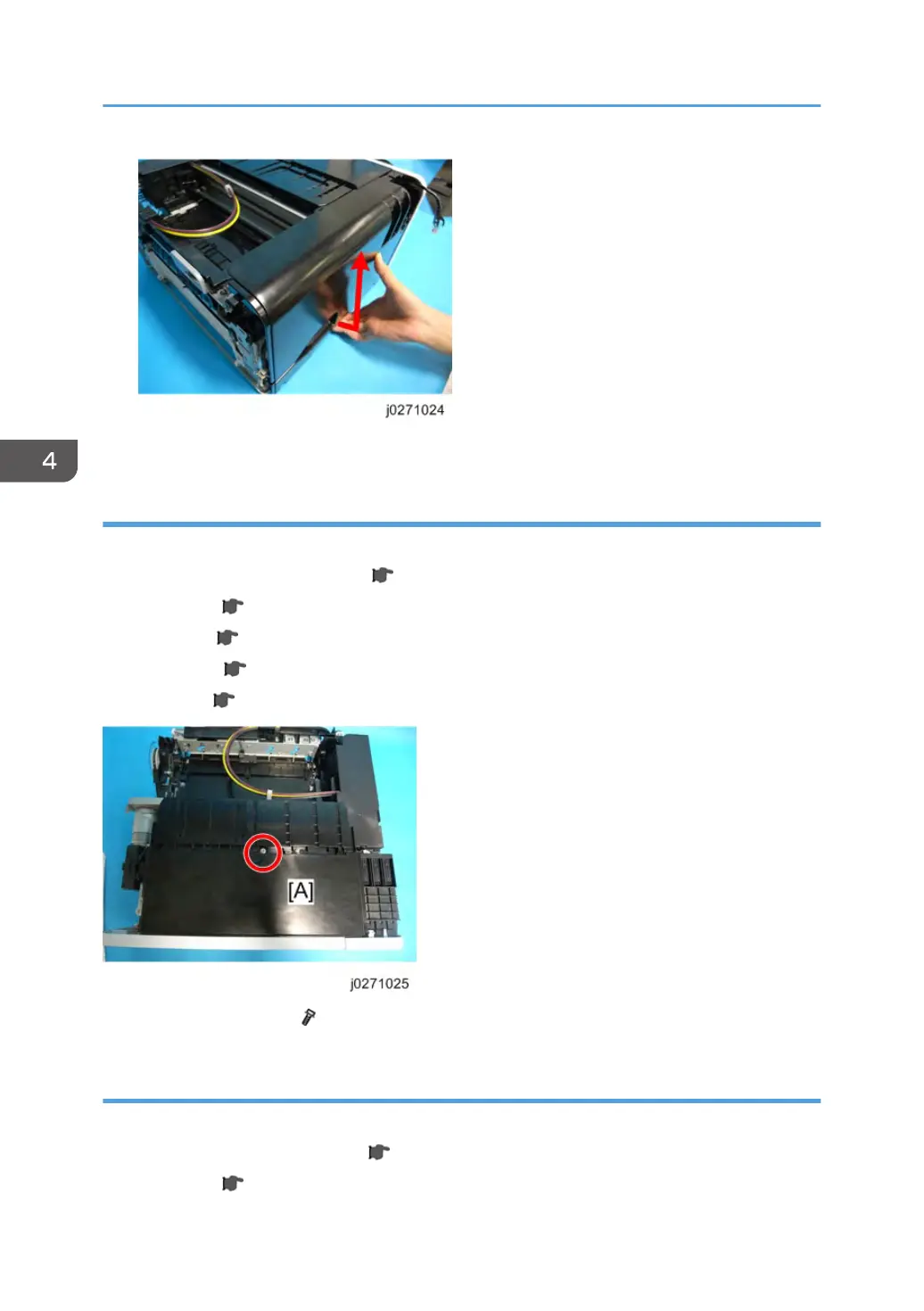

2. Holding the cover's center bottom, lift the cover to detach it.
Canopy Cover
Preparation:
•
Duplex unit (J028 /J029/J035) (
page 48).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Right cover (
page 53).
•
Left cover (
page 55).
1. The canopy cover [A] ( x 1).
Front Cover, Operation Panel Board
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
4. Replacement and Adjustment
56
