Reinstallation

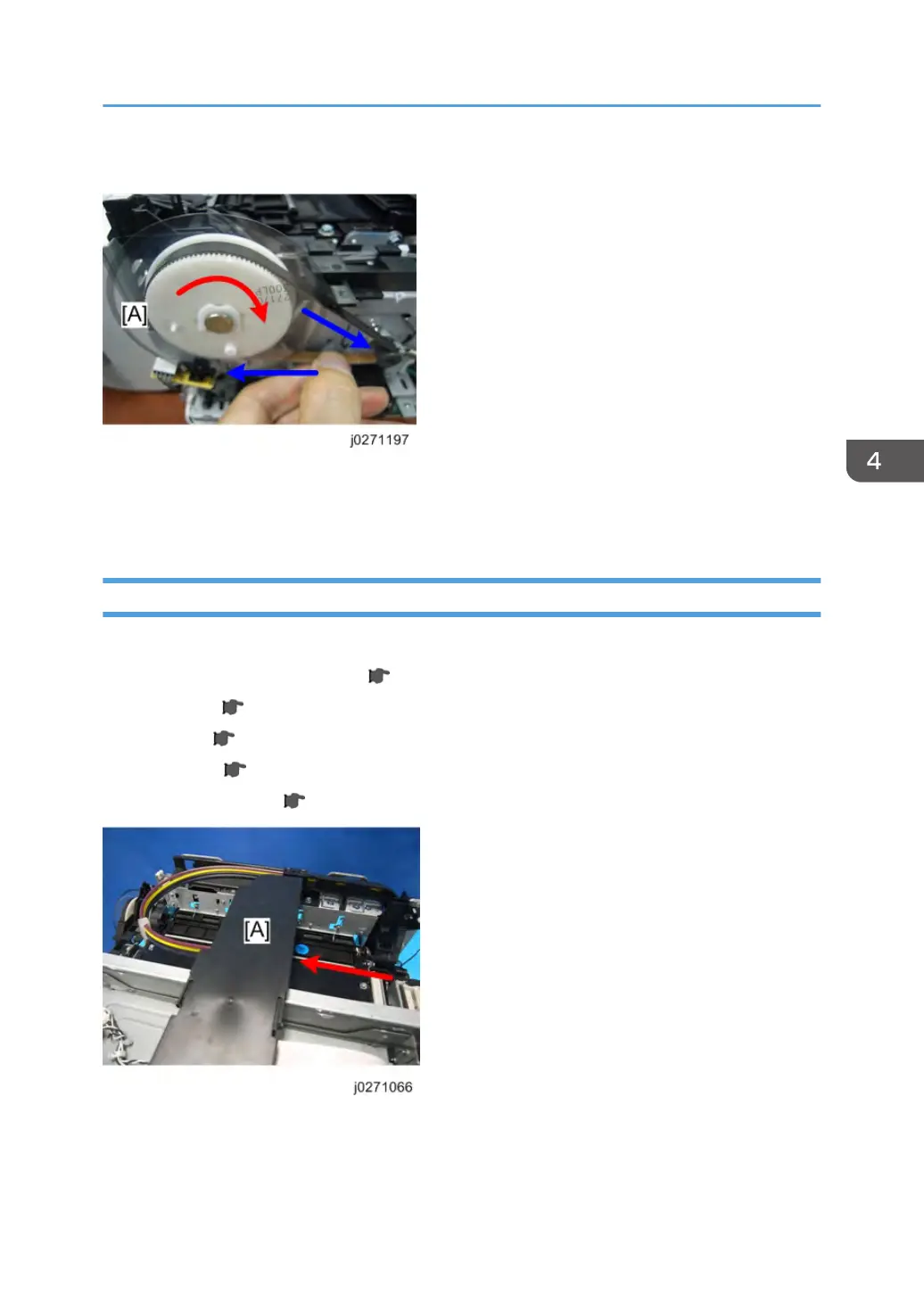

• When reinstalling the vertical encoder wheel [A], turn the wheel slowly while pressing in slightly
until it snaps into the correct position.
•
After attaching the timing belt, move the belt by hand to check that the wheel rotates smoothly.
Horizontal Encoder Strip
Preparation
•
Duplex unit (J028/J029/J035) (
page 48).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Left cover (
page 55).
•
Right cover (
page 53).
•
Unlock the carriage (
page 62)
1. Push the carriage unit [A] to the center.
Encoders
71
