Ricoh Aficio SG 3100DN - Paper End Sensor; Duplex Unit Set;Cover Open Switch

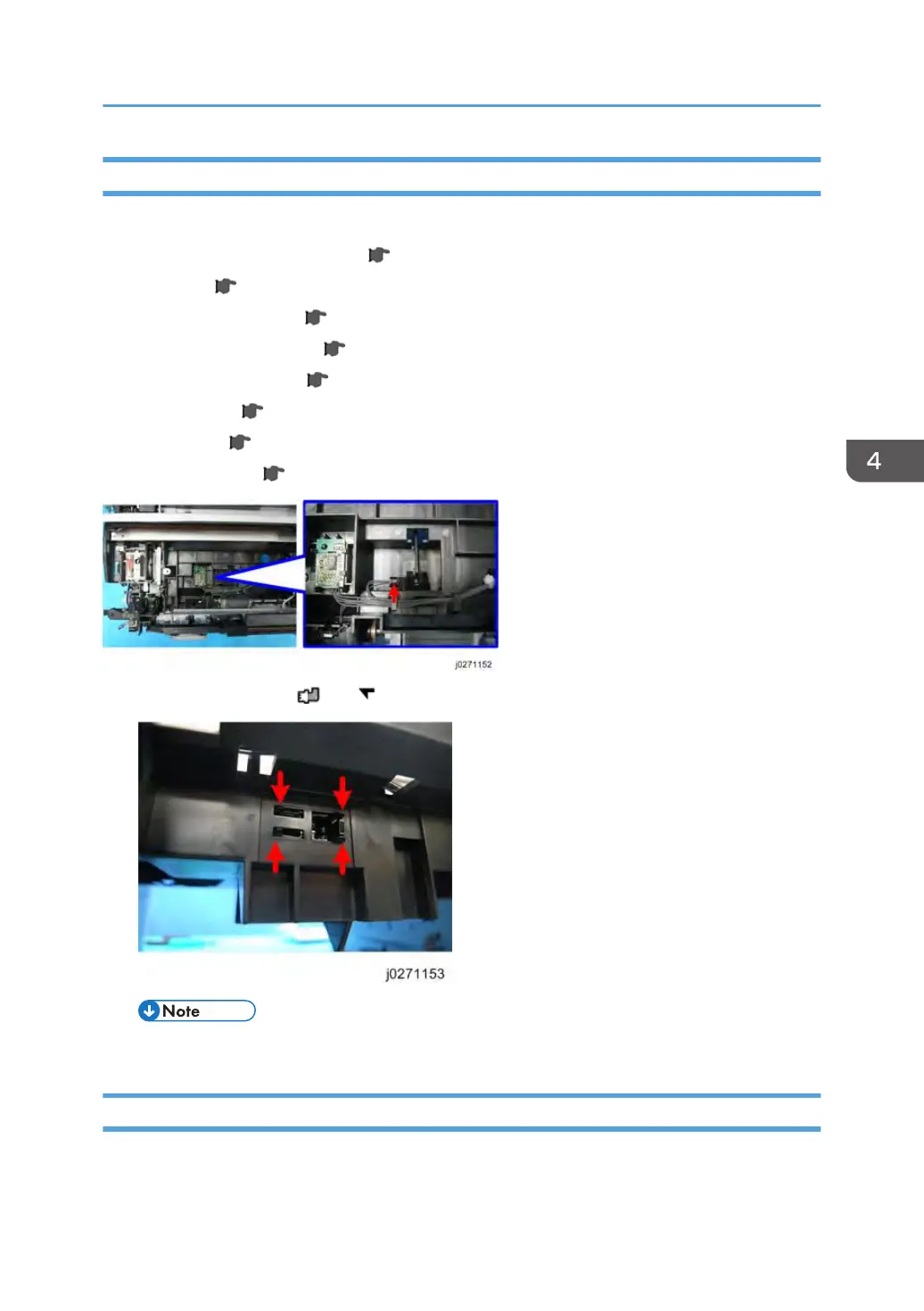

Paper End Sensor
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
All covers (
page 50).
•
2nd registration sensor (
page 106).
•
Bypass drawer connector (
page 115).
•
Vertical encoder wheel (
page 69).
•
Transport belt (
page 97).
•
Feed Clutch (
page 95).
•
Paper feed roller (
page 121, page 124).
1. The paper end sensor ( x 1, x 4).
• The hooks can be exposed by removing the paper feed roller.
Duplex Unit Set/Cover Open Switch
Preparation:
Sensors, Switches
113
