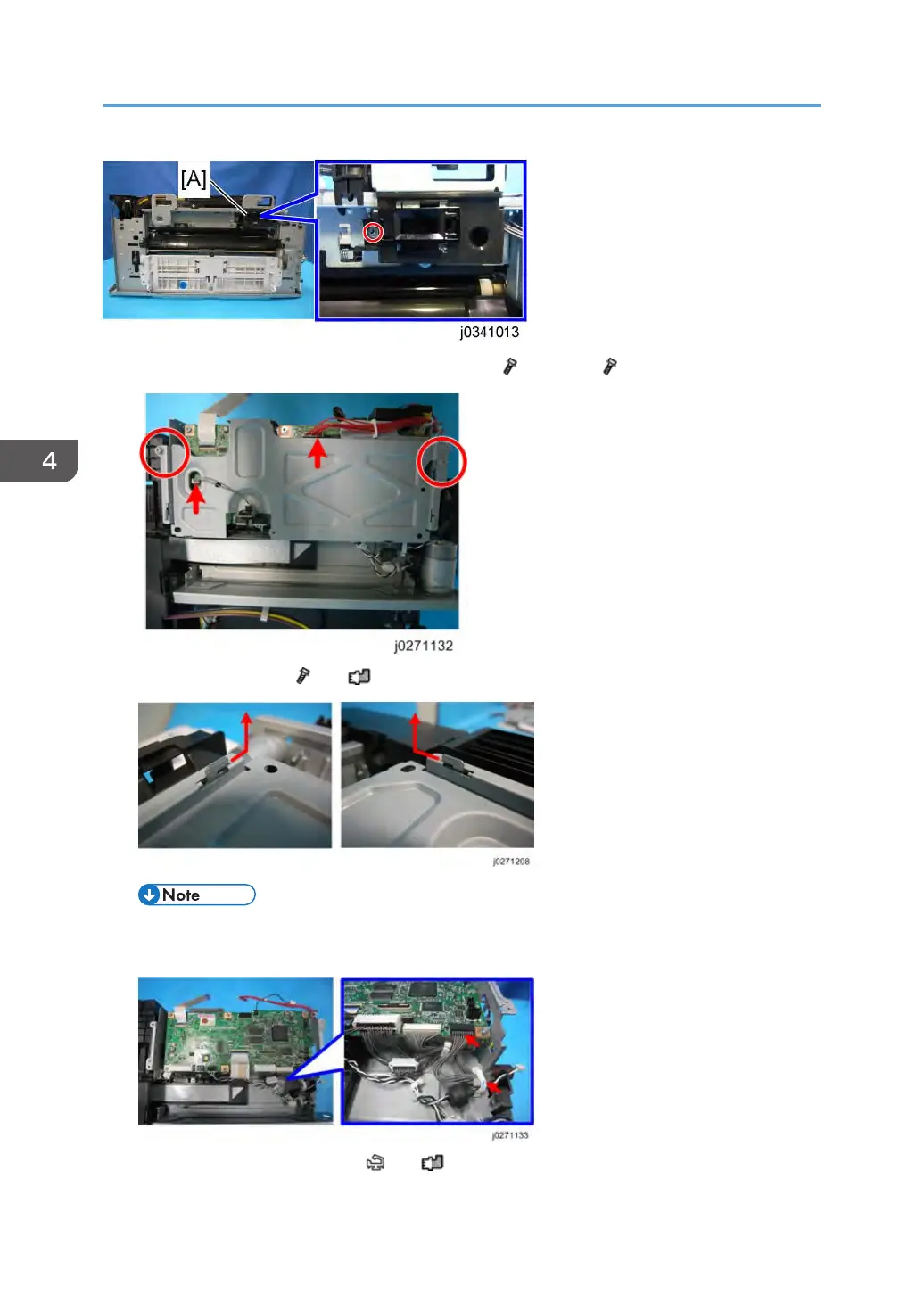

1. The bypass drawer connector bracket (J028/J029: x 2, J035: x 1).
2. The CTL Board cover ( x 2, x 2).
• Slide the cover, and then remove it. Make sure that the carriage is in the home position.
Otherwise, the cover is blocked by the carriage.
3. The multi bypass tray connector ( x 1, x 1).
4. Replacement and Adjustment
116
