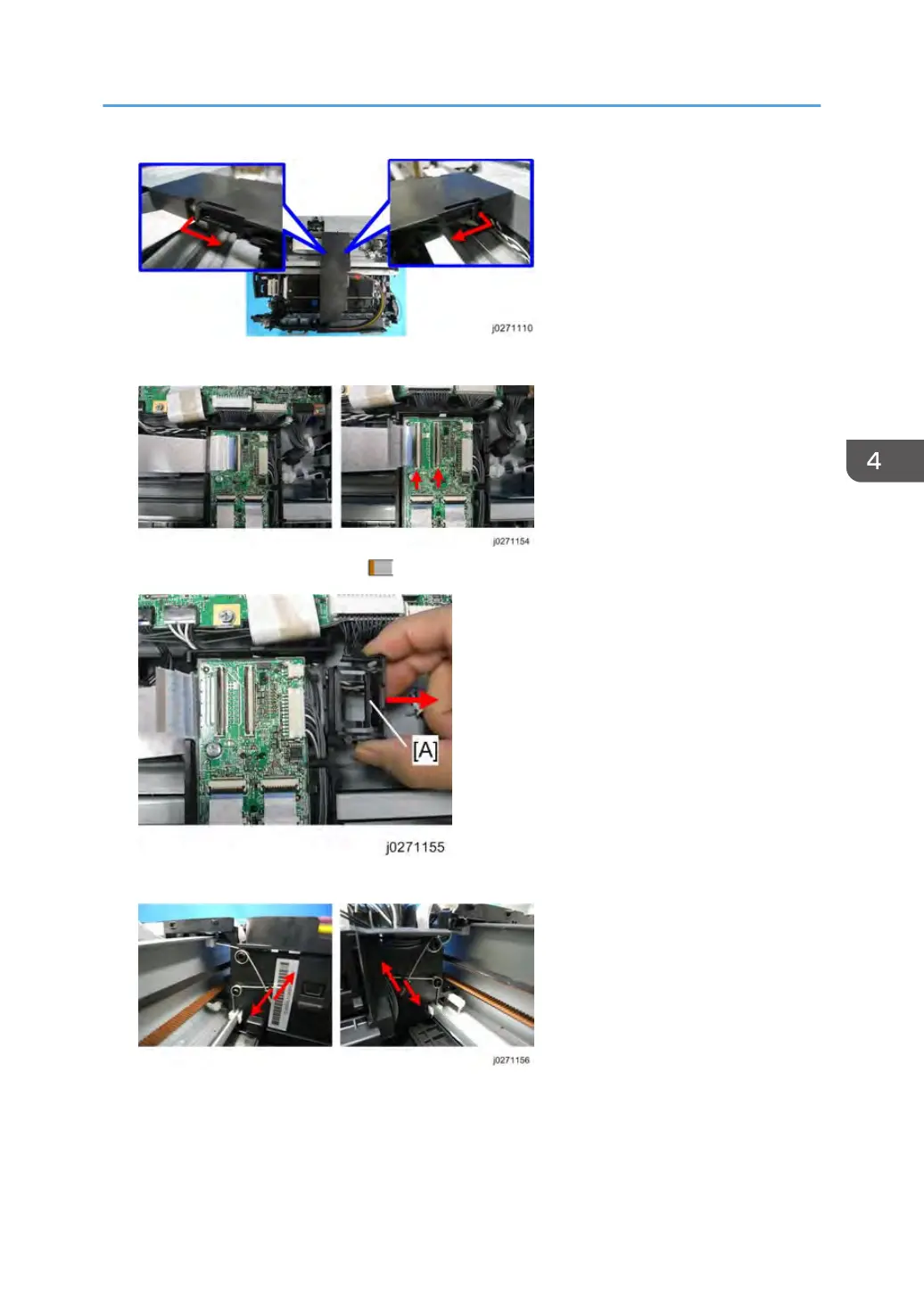

3. Push the carriage to the center, and then remove the top cover.
4. Remove the FFC from the board ( x 2).
5. Remove the FFC holder [A], and then release the FFC from the carriage.
6. Unfasten the carriage unit to make it ready to be removed from the guide rail. (Do not remove it
yet, because it has to be removed together with the ink supply unit.)
Carriage Unit
131
