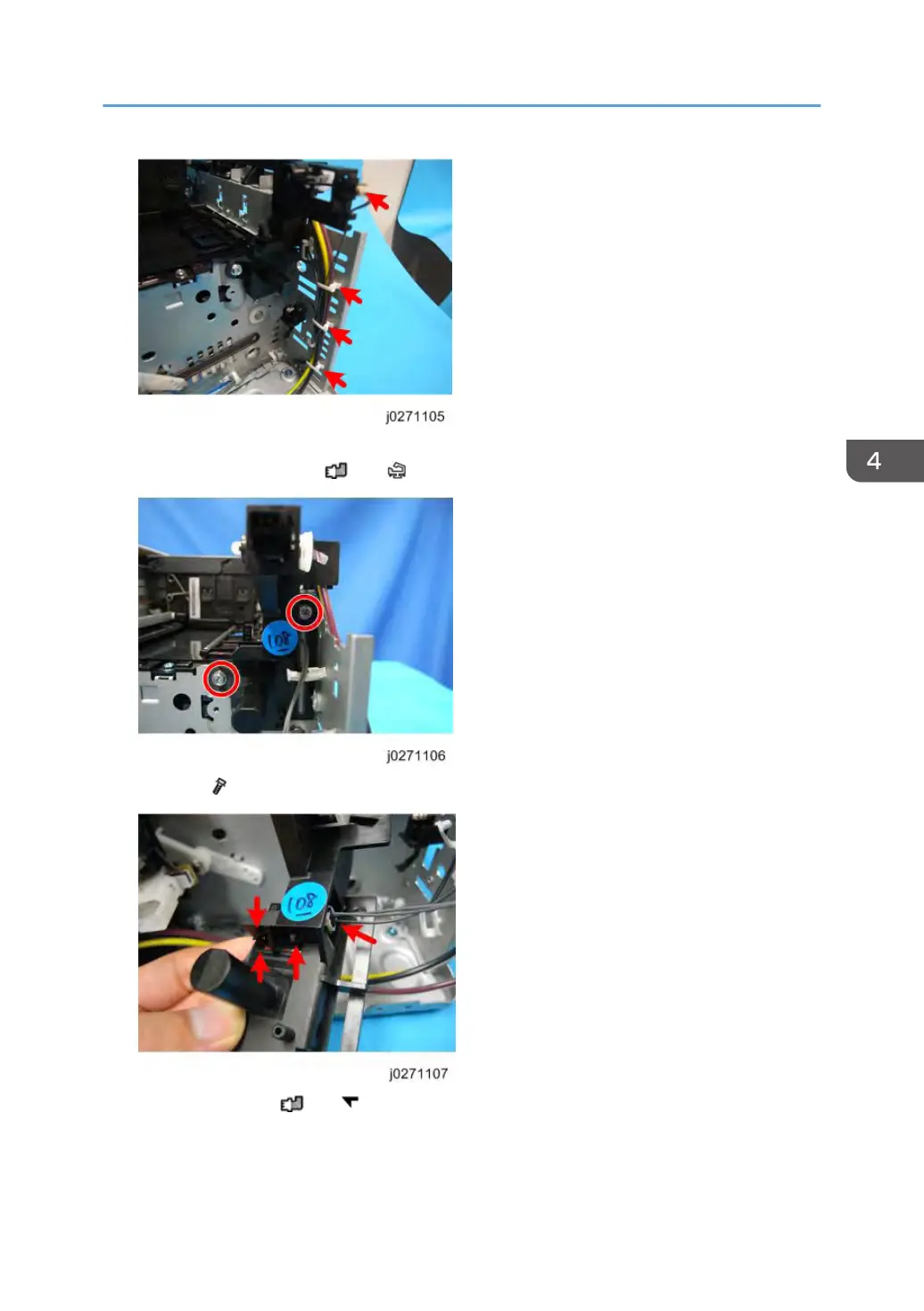

3. Remove the clamps holding the ink tubes, remove the connector, and then move the ink tubes aside
to expose the screw holes ( x 1, x 3).
4. 2 screws ( x 2).
5. The ink level sensor ( x 1, x 3).
Sensors, Switches
103
