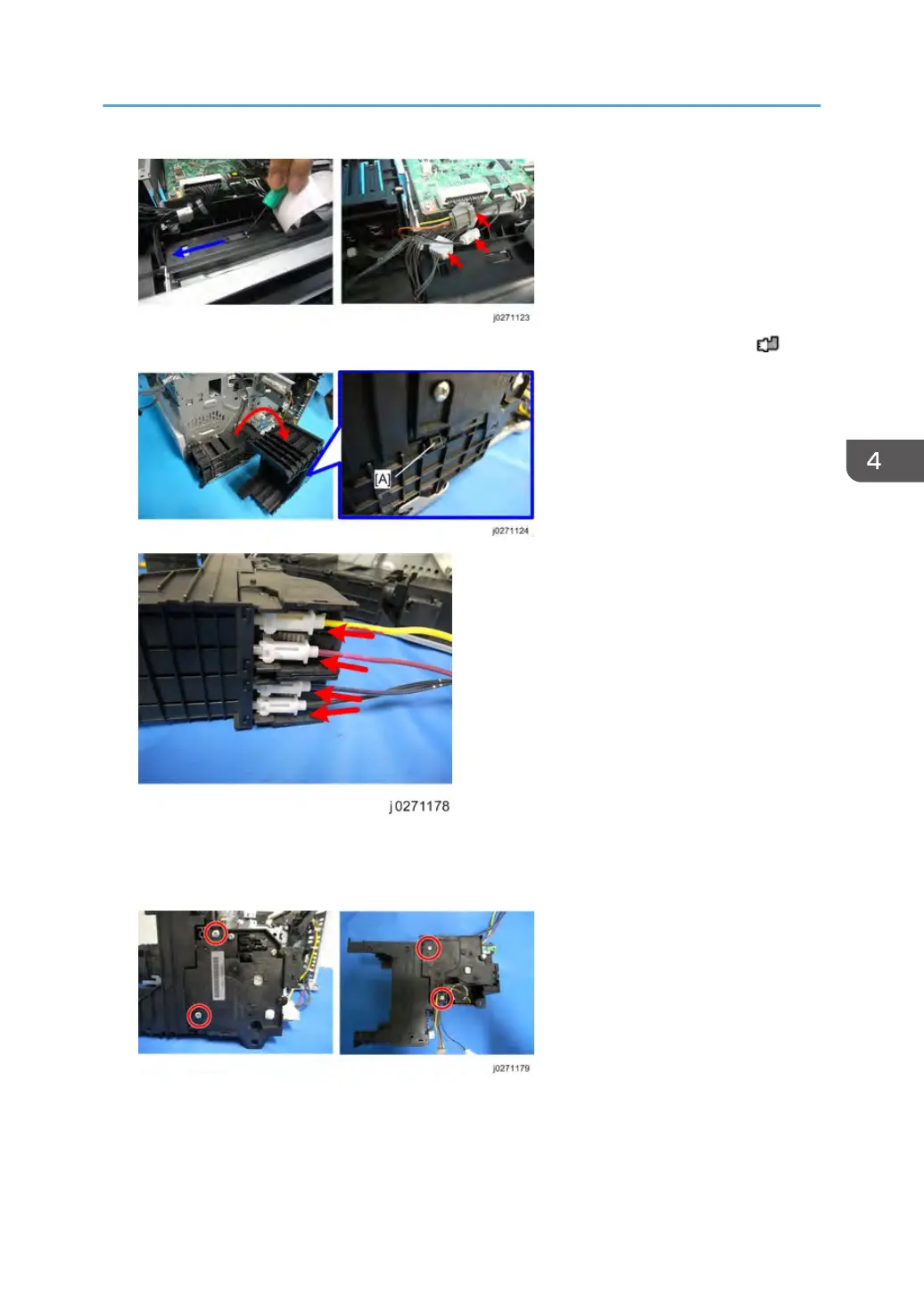

4. Unfasten the FFC holder, and then remove the connectors at the bottom of the CTL board ( x 3).
5. Check that all connectors connected to the ink supply unit have been disconnected and then,
remove the ink supply unit (Do not disconnect the ink tubes. Check that they are connected
properly.) Before you remove the unit, release the lock [A].
Drive Switching Module and Ink Tube Guide
119
