Ricoh Aficio SG 3100DN - Page 136

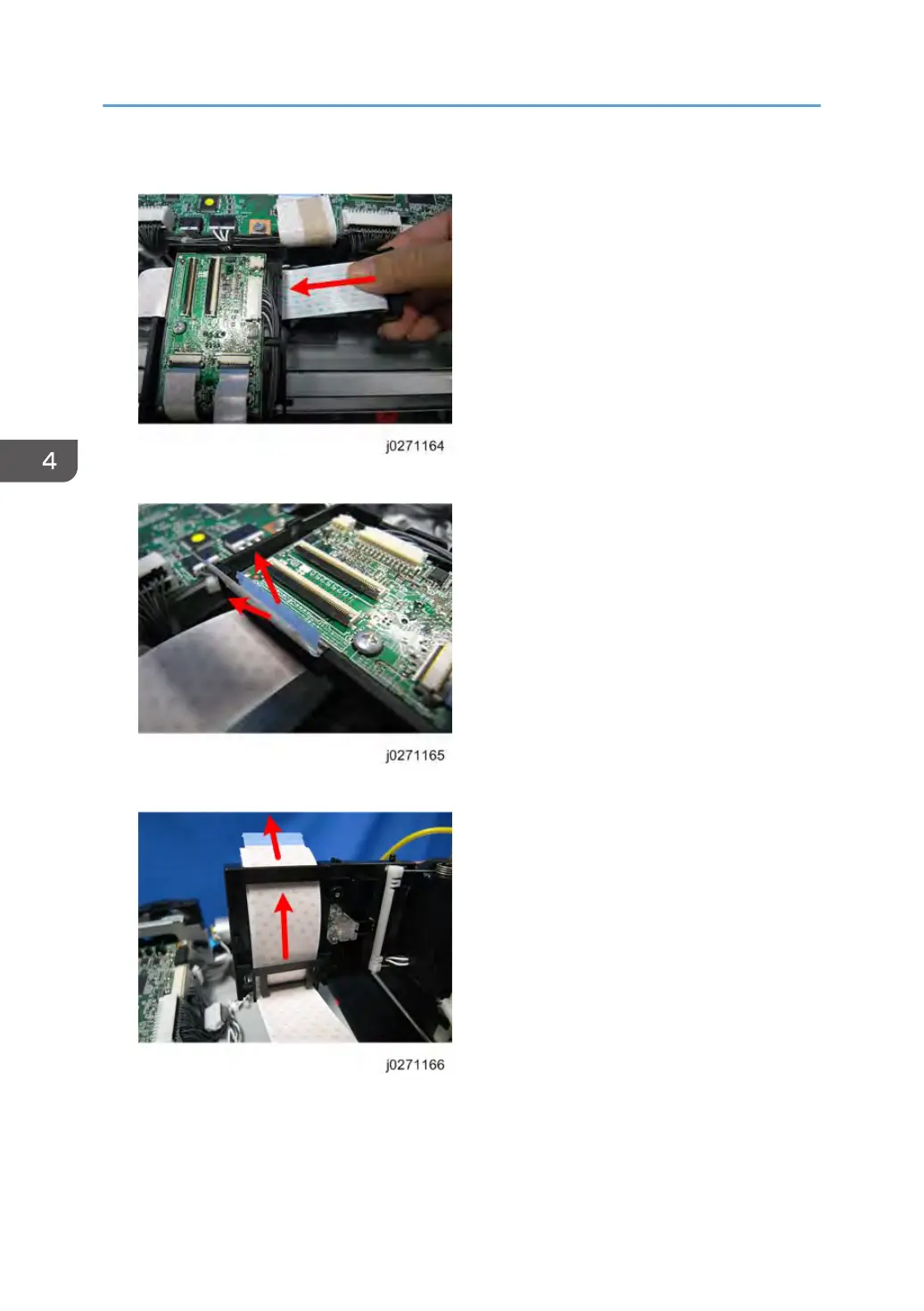

1. Pass the FFC through the holder's slit.
2. Fold the holder and attach it to the carriage.
3. Pull the FFC out from the other side.
4. When stored correctly, it will be as shown.
4. Replacement and Adjustment
134
