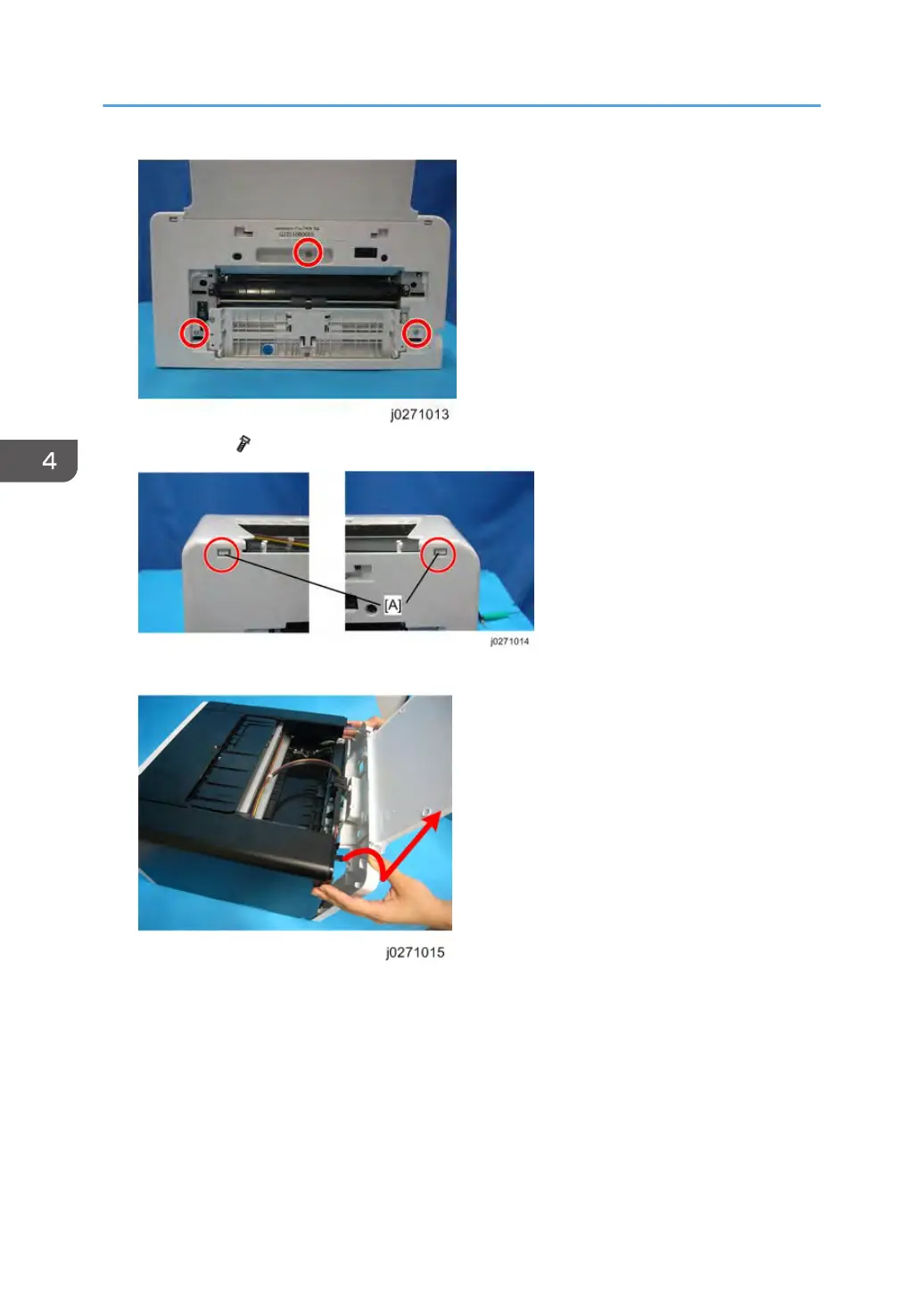

2. Three screws( x 3).
3. Press the tabs [A] on the top left and top right of the rear cover to detach the top of the rear cover.
4. Slide the rear cover up to detach its bottom.
4. Replacement and Adjustment
52
