• Duplex unit (J028/J029/J035) ( page 48).
•
Right front cover (
page 53).

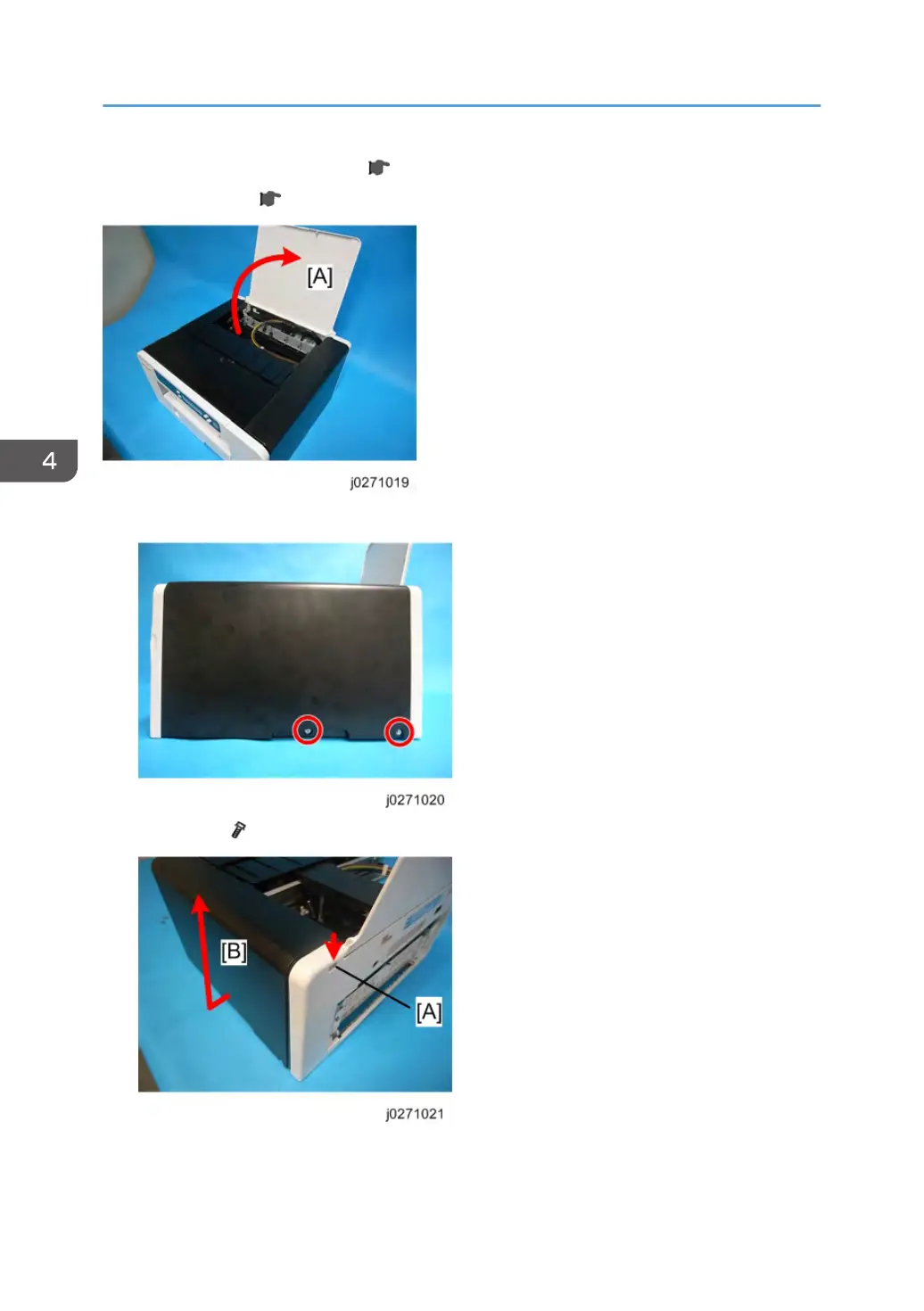

1. Raise the top cover [A].
2. Two screws ( x 2).
3. Pressing the tab [A] on the rear cover, lift the right cover [B] to detach it.
4. Replacement and Adjustment
54
