2. Look at the maintenance unit [A] and locate the two triangles.
3.
Insert the tip of a screwdriver into the hole [B] and turn it counter-clockwise to rotate the lower
triangle up to the other triangle [C] until they are aligned.
4. When the triangles are aligned, the carriage is unlocked.

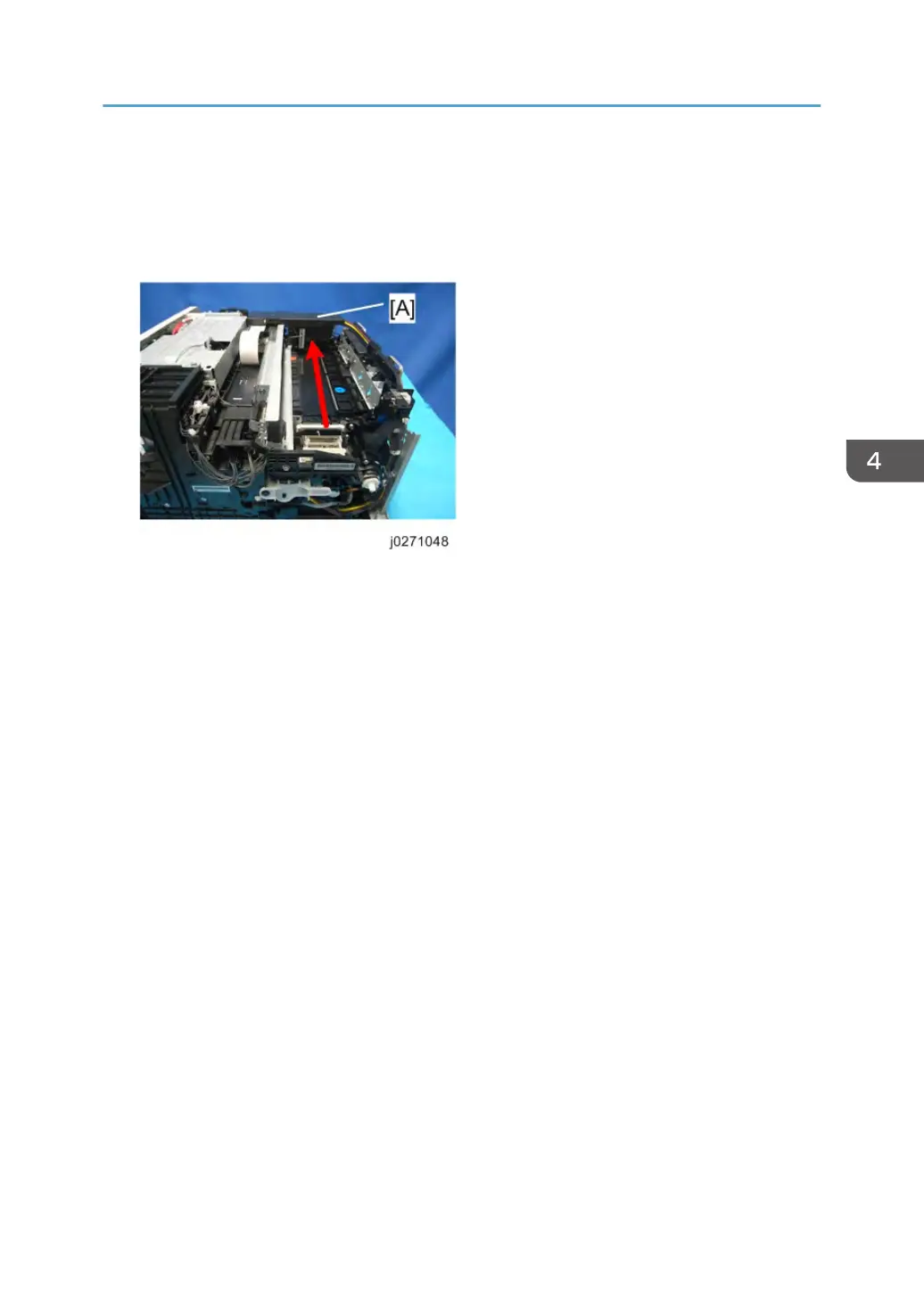

5. Push the carriage [A] completely to the left.
6.
After completing the procedure:
• You must lock the carriage unit again.
• Insert the screwdriver into the side of the maintenance unit, rotate it counter-clockwise to move
the lower triangle down until it is below the upper triangle.
• When the triangles are not aligned, the carriage is locked.
• Always make sure that the carriage is locked before you re-attach the right cover.
