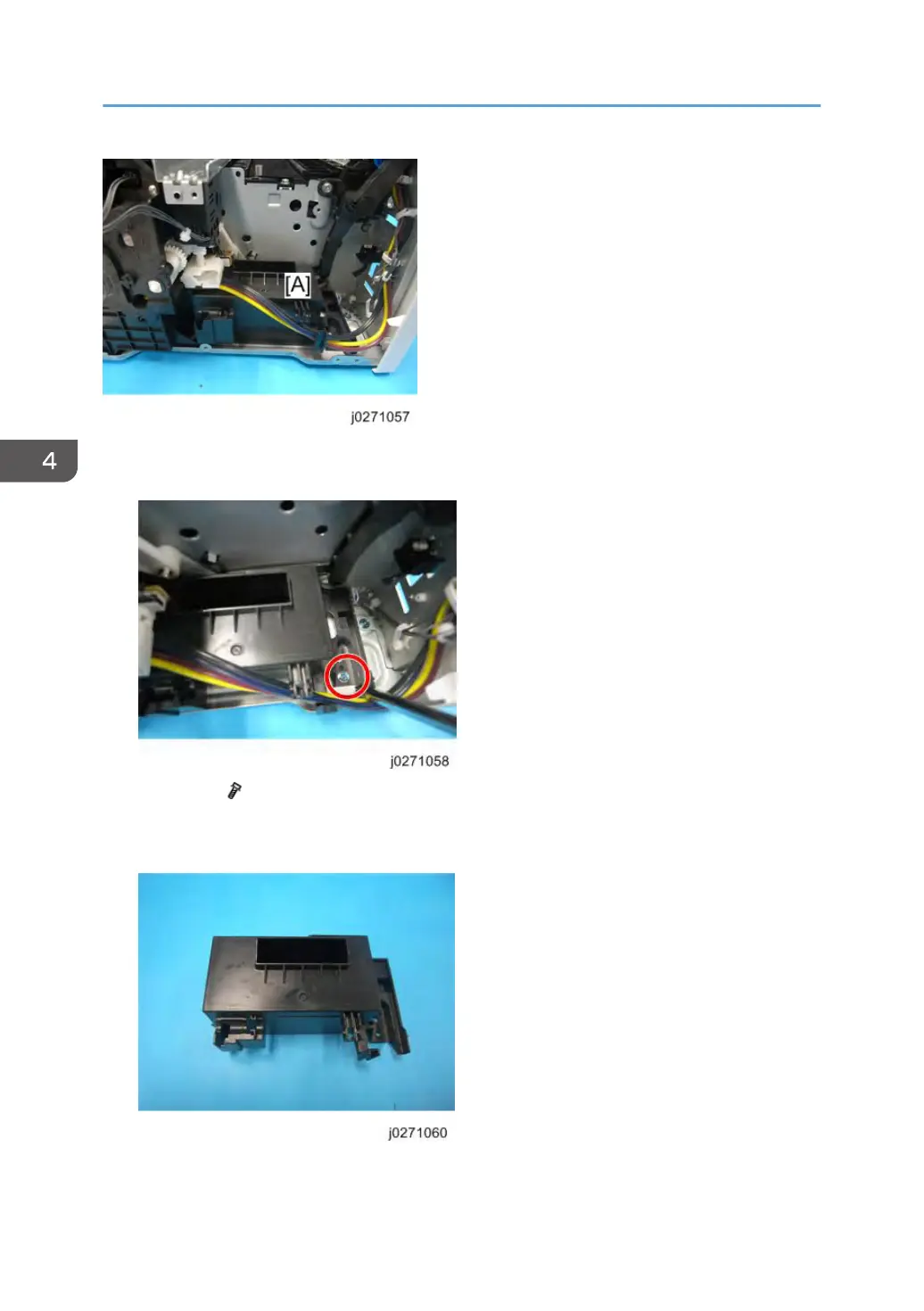

1. The right ink sump [A] is located below and to the left of the maintenance unit (shown removed in
the photo above.)
2. One screw ( x 1).
3.
Pull the right ink sump aside to expose the ink tubes, and then remove the right ink sump using its
handles.
4. After re-installing the maintenance unit, execute manual cleaning.
