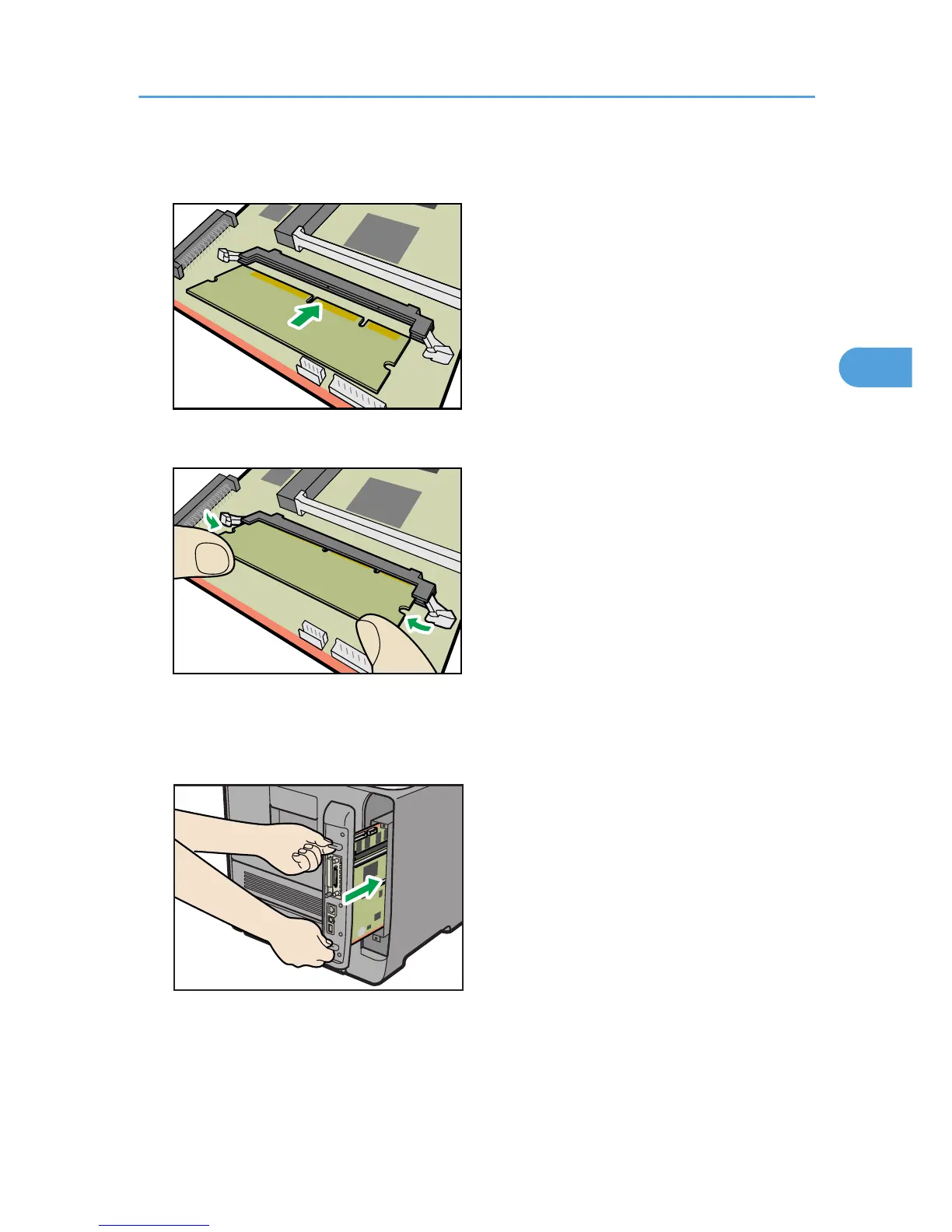

5. To install the recommended memory, align the notch of the recommended memory with the
protruding part of the vacant slot, and then carefully insert the module at an angle.
CEC013
6. Keeping the module at an angle, press it down until it clicks into place.
CEC014
7. Align the controller board with the top and bottom rails, and then push it carefully in, until
it stops.
The printer may malfunction if the controller board is not properly installed.
CEC076
Installing the Memory Expansion Units
57
3
