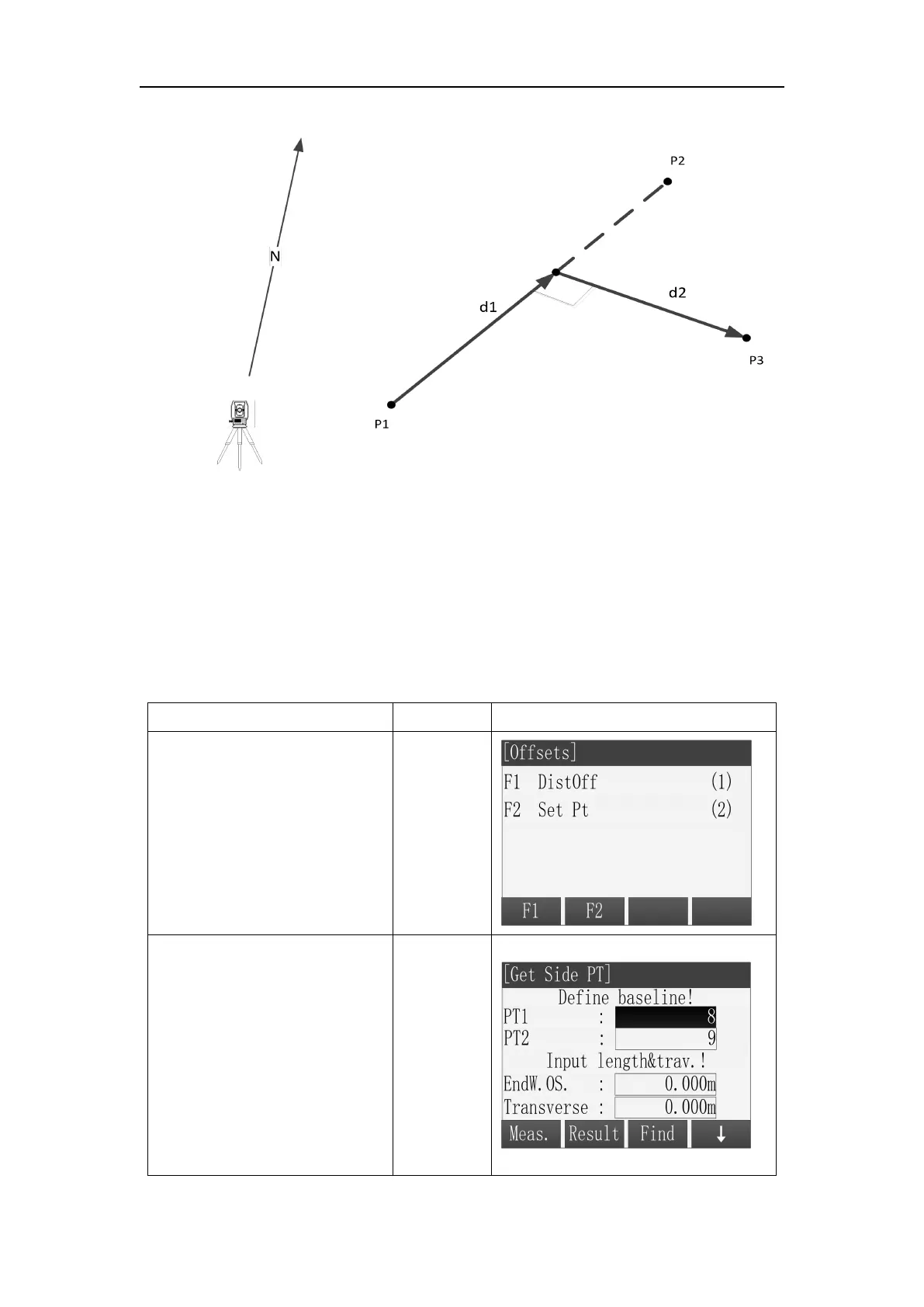

Figure 11.8 Set Point Diagram
Known
P1 Start Point
P2 End Point
d1 △Line
d2 △Offset
Unknown
P3 COGO point
Steps
key
Display
○
1 In the [Offsets] screen,
press [F2] or [2] to enter the
Set Point sub application.
[F2]
or
[2]
○
2 Set the start point and
end point.
※ There are four ways to get
the known point for Set
Point calculation. Please
refer to the step
○
2 in the
“COGO Traverse”.
Set known
points
