148 CHAPTER 3 J-Link software and documentation package
J-Link / J-Trace (UM08001) ©
2004-2017 SEGGER Microcontroller GmbH & Co. KG
3.9 SWO Analyzer

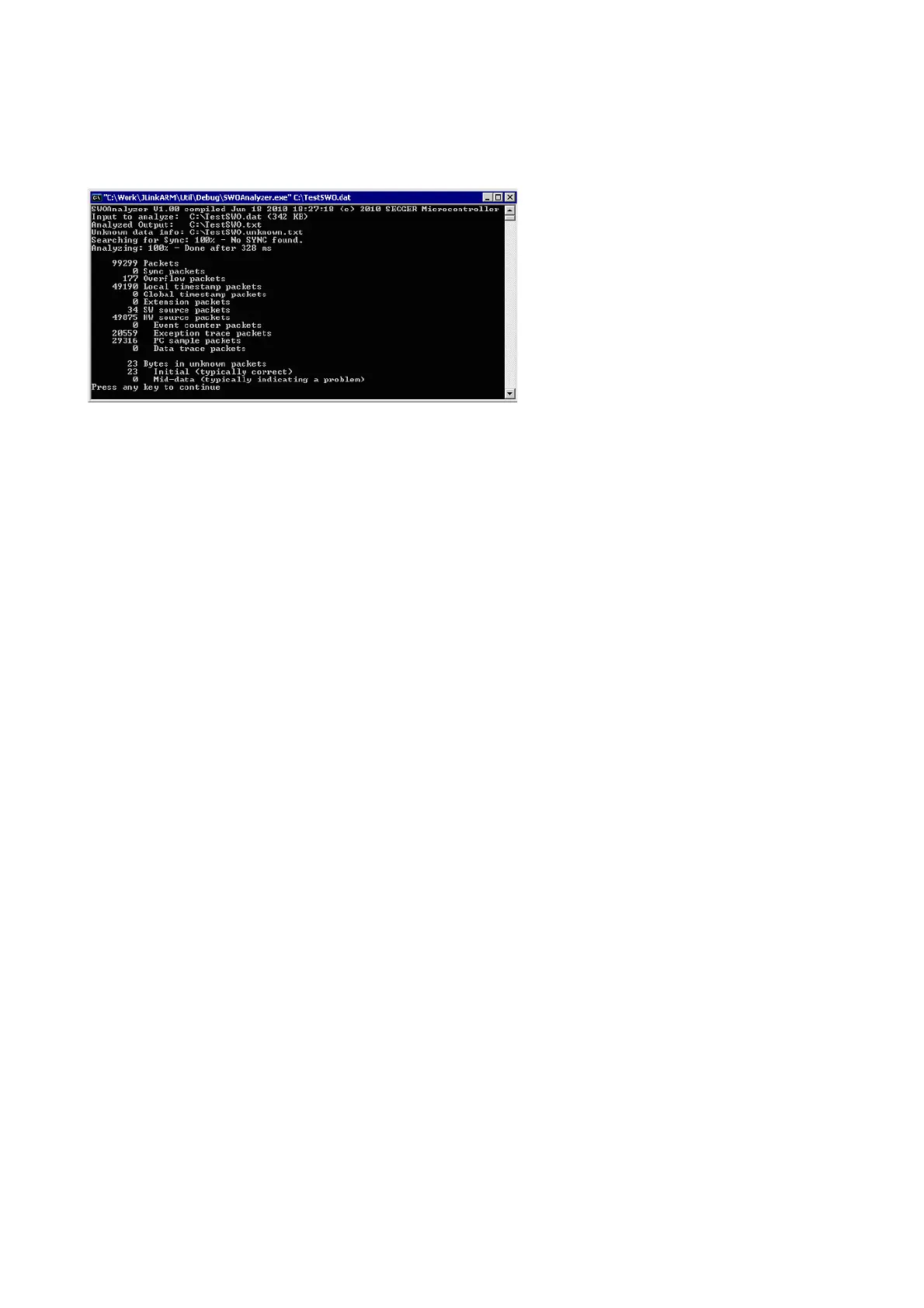

SWO Analyzer (SWOAnalyzer.exe) is a tool that analyzes SWO output. Status and
summary of the analysis are output to standard out, the details of the analysis are
stored in a file.
Usage
SWOAnalyzer.exe <SWOfile>
This can be achieved by simply dragging the SWO output file created by the J-Link
DLL onto the executable.
Creating an SWO output file
In order to create the SWO output file, which is th input file for the SWO Analyzer,
the J-Link config file needs to be modified.
It should contain the following lines:
[SWO]
SWOLogFile="C:\TestSWO.dat"
