170 CHAPTER 4 Setup
J-Link / J-Trace (UM08001) ©
2004-2017 SEGGER Microcontroller GmbH & Co. KG

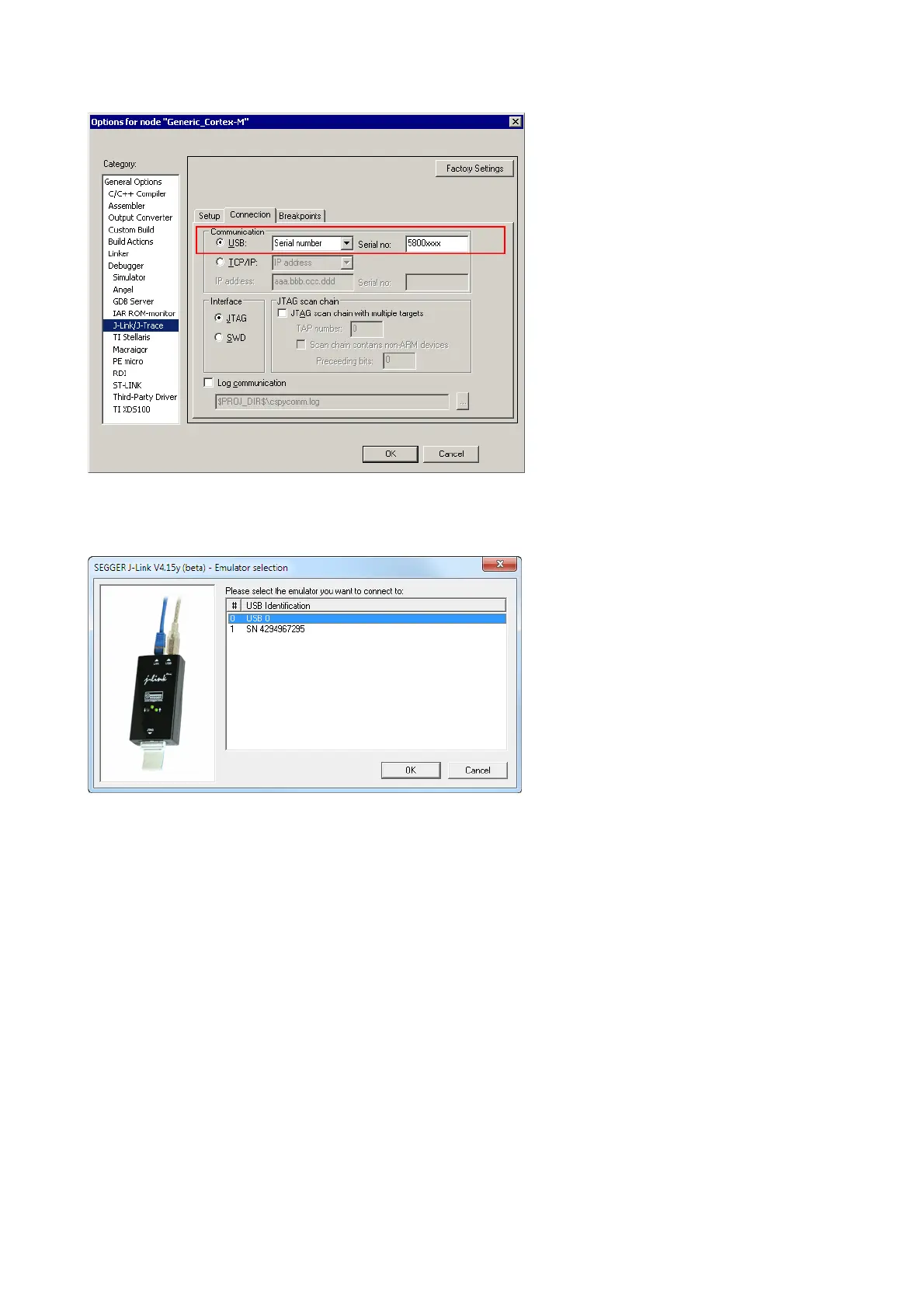

The following screenshot shows the connection dialog of IAR EWARM:
A debugger / software which does not provide such a functionality, the J-Link DLL
automatically detects that multiple J-Links are connected to the PC and shows a
selection dialog which allows the user to select the appropriate J-Link to connect to.
So even in IDEs which do not have an selection option for the J-Link, it is possible to
connect to different J-Links.
