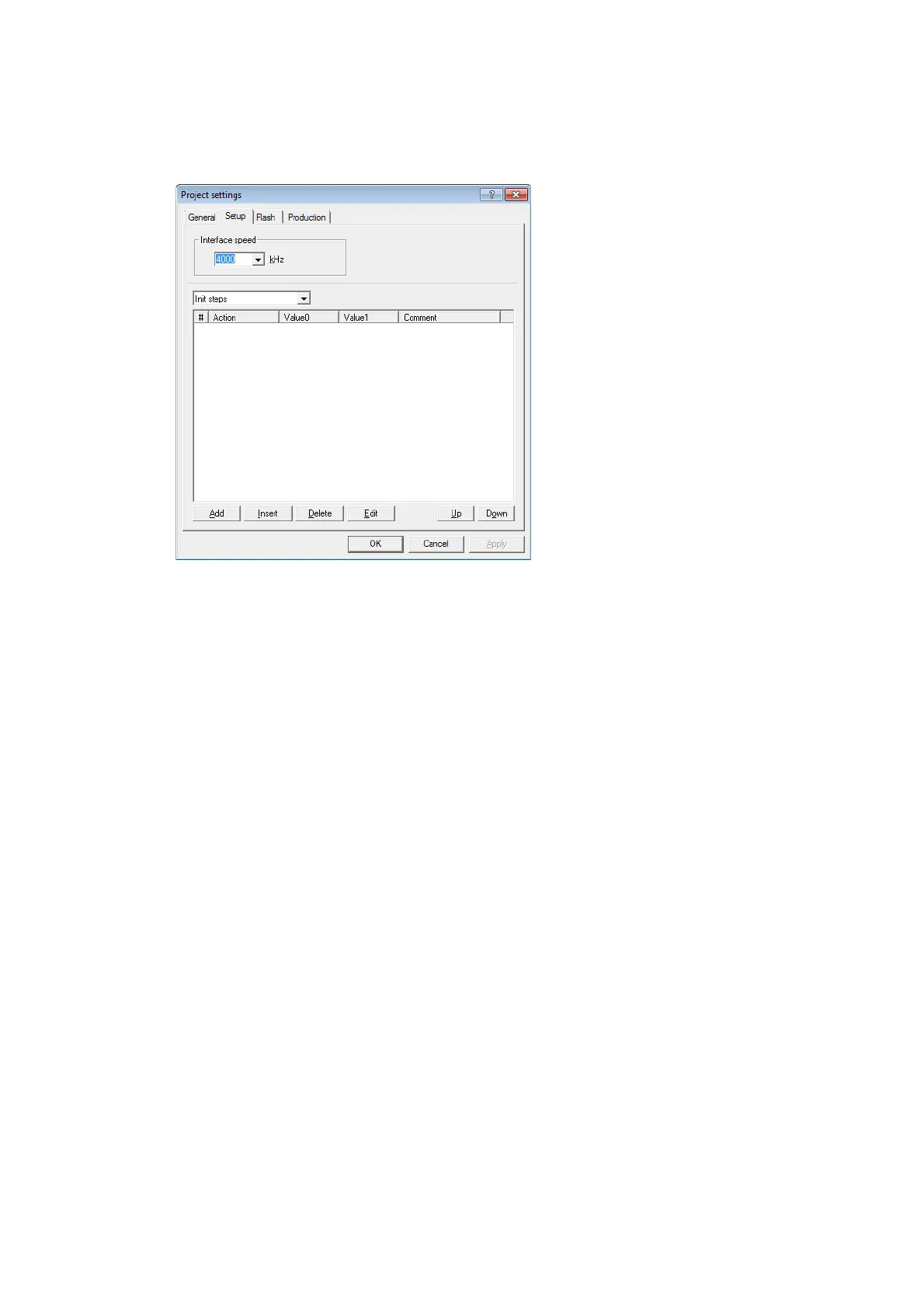

11.4.1.2 Setup
This dialog is used to configure the SPI interface settings like SPI communication
speed and allows to add Init steps and Exit steps which can be used to execute cus-
tom command sequences.
11.4.1.2.1 Interface Speed
Specifies the SPI communication speed J-Link uses to communicate with the SPI
flash.
11.4.1.2.2 Init and Exit steps
Can be uesed to add custom command sequences like for example write protection
register. For further information regarding this, please refer to Custom Command
Sequences on page 316.
11.4.1.3 Flash Settings
This dialog is used to select and configure the parameters of the SPI flash that J-
Flash SPI will connect to. Examples for flash parameters are: Sector size (Smallest
erasable unit), page size (smallest programmable unit), Flash ID, etc. There is also
